4CX SM JCB 4CX SM Specifications & Technical Data (2017—2020)

The JCB 4CX SM is a backhoe loader manufactured by JCB from 2017 to 2020. It has a weight of 8.58 tons and a transport length of 5…

The JCB 4CX SM is a backhoe loader manufactured by JCB from 2017 to 2020. It has a weight of 8.58 tons and a transport length of 5.91 meters. The bucket capacity is 1 cubic meter, with a dredging depth of 4.32 meters and a bucket width of 2.35 meters. The maximum discharge height is 2.69 meters, and it has a maximum reach horizontal of 5.4 meters. The transport width is 2.36 meters, and the transport height is 3.62 meters. This construction machine is equipped with outrigger stabilizers as its special equipment.

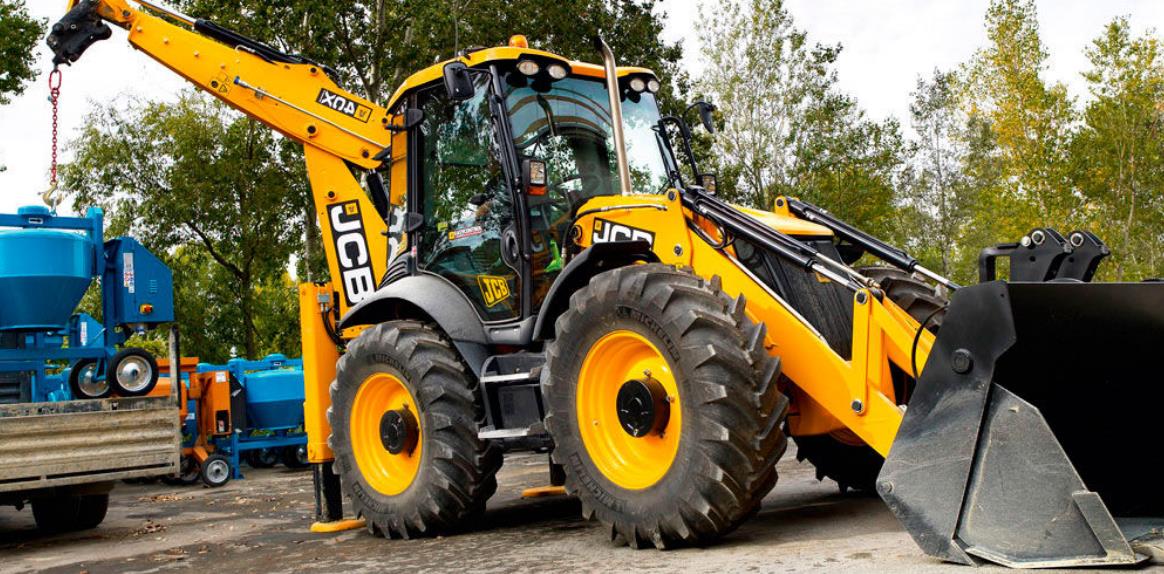

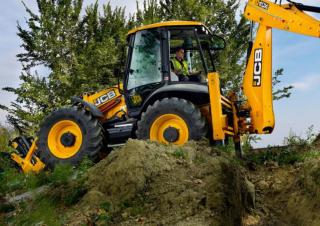

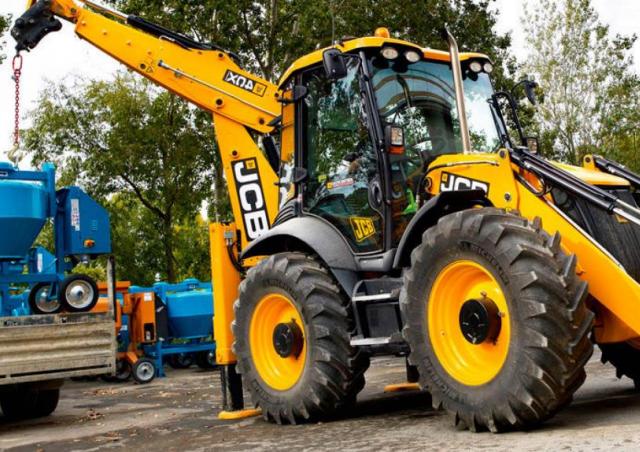

Backhoe Loaders JCB 4CX SM
Backhoe Loaders JCB 4CX SM
Backhoe Loaders JCB 4CX SM
Backhoe Loaders JCB 4CX SM

Visit JCB live at

Technical specs - 4CX SM JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.58 t
Standard tyres
440/80-28
Bucket width
2.35 m
Bucket capacity
1 m³
Drive
A
Transport length
5.91 m
Transport width
2.36 m
Transport height
3.62 m
Tear-out force
52.8 kN
Max. Reach horizontal
5.4 m
Dredging depth
4.32 m
Max. discharge height
2.69 m
Model series
CX
Engine manuf.
JCB
Engine type
EcoMax
Engine power
81 kW
Emission level
IV

More technical details, like: bucket capacity backhoe, tear-out force backhoe, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

JCB 4CX SM FAQ

When was the JCB 4CX SM manufactured?

The JCB 4CX SM was manufactured from 2017 to 2020.

How much does the JCB 4CX SM backhoe loader weigh?

The JCB 4CX SM backhoe loader weighs 8.58 tons.

What are the transport dimensions of the JCB 4CX SM backhoe loader?

The JCB 4CX SM has a transport length of 5.91 meters, a transport width of 2.36 meters, and a transport height of 3.62 meters.

What are the undercarriage specifications of the JCB 4CX SM backhoe loader?

The JCB 4CX SM features an all-wheel drive system and standard tyres sized 440/80-28.

What is the excavation performance of the JCB 4CX SM backhoe loader?

The JCB 4CX SM has a dredging depth of 4.32 meters and a maximum horizontal reach of 5.4 meters.

What is the tear-out force of the JCB 4CX SM backhoe loader?

The JCB 4CX SM backhoe loader has a tear-out force of 52.8 kN.

What is the maximum discharge height for material handling of the JCB 4CX SM backhoe loader?

The JCB 4CX SM backhoe loader has a maximum discharge height of 2.69 meters for material handling.

What are the specifications of the primary work tool bucket on the JCB 4CX SM?

The JCB 4CX SM has a bucket with a capacity of 1 cubic meter and a width of 2.35 meters.

How much is a JCB 4CX SM Backhoe loader (2017u20132020) worth?

The residual value of the JCB 4CX SM depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
