4CX SM JCB 4CX SM Specifications & Technical Data (2017—2020)

The JCB 4CX SM is a backhoe loader manufactured by JCB from 2017 to 2020. It has a weight of 8.58 tons and a transport length of 5…

The JCB 4CX SM is a backhoe loader manufactured by JCB from 2017 to 2020. It has a weight of 8.58 tons and a transport length of 5.91 meters. The bucket capacity is 1 cubic meter, with a tear-out force of 61.06 kN. It has a dredging depth of 4.32 meters and a bucket width of 2.35 meters. The maximum discharge height is 2.69 meters, and the maximum reach horizontal is 5.4 meters. It has a travel speed of 40 km/h. The transport width is 2.36 meters and the transport height is 3.62 meters. The backhoe has a bucket capacity of 0.26 cubic meters and a tear-out force of 61.07 kN. It is equipped with outrigger stabilizers.

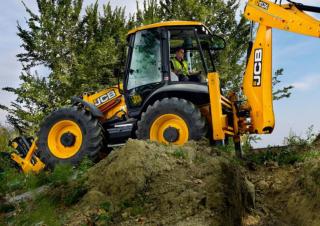

Backhoe Loaders JCB 4CX SM
Backhoe Loaders JCB 4CX SM
Backhoe Loaders JCB 4CX SM
Backhoe Loaders JCB 4CX SM

Visit JCB live at

Technical specs - 4CX SM JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.58 t
Standard tyres
440/80-28
Bucket width
2.35 m
Bucket capacity
1 m³
Bucket capacity backhoe
0.26 m³
Drive
A
Transport length
5.91 m
Transport width
2.36 m
Transport height
3.62 m
Tear-out force
61.06 kN
Tear-out force backhoe
61.07 kN
Max. Reach horizontal
5.4 m
Dredging depth
4.32 m
Max. discharge height
2.69 m
Travel speed
40 km/h
Model series
CX
Engine manuf.
JCB
Engine type
EcoMax
Engine power
81 kW
Emission level
IV

More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

JCB 4CX SM FAQ

When was the JCB 4CX SM manufactured?

The JCB 4CX SM was manufactured from 2017 to 2020.

How much does the JCB 4CX SM backhoe loader weigh?

The JCB 4CX SM backhoe loader weighs 8.58 tons.

What are the transport dimensions of the JCB 4CX SM backhoe loader?

The JCB 4CX SM has a transport length of 5.91 meters, a transport width of 2.36 meters, and a transport height of 3.62 meters.

What is the travel speed of the JCB 4CX SM backhoe loader?

The JCB 4CX SM backhoe loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the JCB 4CX SM backhoe loader?

The JCB 4CX SM backhoe loader features an all-wheel drive system and standard tyres sized 440/80-28.

What are the excavation performance specifications of the JCB 4CX SM backhoe loader?

The JCB 4CX SM has a dredging depth of 4.32 meters and a maximum horizontal reach of 5.4 meters.

What are the tear-out forces of the JCB 4CX SM backhoe loader?

The JCB 4CX SM has a tear-out force of 61.06 kN and a backhoe tear-out force of 61.07 kN.

What is the maximum discharge height of the JCB 4CX SM?

The JCB 4CX SM has a maximum discharge height of 2.69 meters.

What are the bucket specifications of the JCB 4CX SM backhoe loader?

The JCB 4CX SM has a front bucket capacity of 1 cubic meter with a width of 2.35 meters, and the backhoe bucket capacity is 0.26 cubic meters.

How much is a JCB 4CX SM Backhoe loader (2017u20132020) worth?

The residual value of the JCB 4CX SM depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
