4CX SM JCB 4CX SM Specifications & Technical Data (2009—2016)

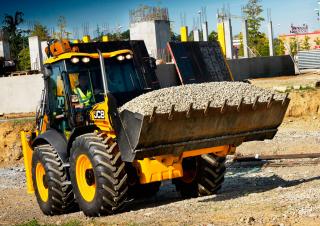

The JCB 4CX SM is a backhoe loader manufactured by JCB from 2009 to 2016. It has a weight of 8.58 tons and a transport length of 5…

The JCB 4CX SM is a backhoe loader manufactured by JCB from 2009 to 2016. It has a weight of 8.58 tons and a transport length of 5.91 meters. The bucket capacity is 1.2 cubic meters, with a dredging depth of 4.32 meters and a bucket width of 2.33 meters. The maximum discharge height is 2.69 meters, and it has a maximum reach horizontal of 5.4 meters. The transport width is 2.36 meters, and the transport height is 3.62 meters. This construction machine is equipped with special equipment including a clamshell, forklift utility, and outrigger stabilizers.

Backhoe Loaders JCB 4CX SM

Visit JCB live at

Technical specs - 4CX SM JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.58 t
Standard tyres
16.9-24
Bucket width
2.33 m
Bucket capacity
1.2 m³
Drive
A
Transport length
5.91 m
Transport width
2.36 m
Transport height
3.62 m
Tear-out force
52.8 kN
Max. Reach horizontal
5.4 m
Dredging depth
4.32 m
Max. discharge height
2.69 m
Model series
CX
Engine manuf.
JCB
Engine type
444
Engine power
81 kW
Displacement
4.4 l
Revolutions at max torque
1300 rpm
Max. torque
516 Nm
No. of cylinders
4
Cylinder bore x stroke
103x132 mm

More technical details, like: bucket capacity backhoe, tear-out force backhoe, travel speed, dimension lxwxh, emission level, backhoe type, engine manufacturer, engine model, aspiration, rated speed, engine output - net, engine output - gross...

More technical details, like: bucket capacity backhoe, tear-out force backhoe, travel speed, dimension lxwxh, emission level, backhoe type, engine manufacturer, engine model, aspiration, rated speed, engine output - net, engine output - gross, transmission type, number of travel speeds, drive - 2wd / 4wd, service brake type, length - roading, height - over cab, maximum height, width, ground clearance, width - standard shovel, stabiliser type, maximum dig depth - longest dipper, dig depth - sae, dig depth - sae retracted dipper, dig depth - sae extended dipper, reach from slew pivot - non-extending dipper, reach from slew pivot - retracted dipper, reach from slew pivot - extended dipper, loading height - non-extending dipper, loading height - retracted dipper, loading height - extended dipper, dump height - general purpose, dump angle - general purpose, dump height - multi-purpose, dump angle - multi-purpose, fuel tank, shovel capacity - standard general purpose, shovel capacity - multi-purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose, shovel breakout - multi-purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
Yes
Forklift utility
Yes
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

JCB 4CX SM FAQ

When was the JCB 4CX SM manufactured?

The JCB 4CX SM was manufactured from 2009 to 2016.

How much does the JCB 4CX SM backhoe loader weigh?

The JCB 4CX SM backhoe loader weighs 8.58 tons.

What are the transport dimensions of the JCB 4CX SM backhoe loader?

The JCB 4CX SM has a transport length of 5.91 meters, a transport width of 2.36 meters, and a transport height of 3.62 meters.

What are the undercarriage specifications of the JCB 4CX SM backhoe loader?

The JCB 4CX SM backhoe loader has an all-wheel drive system and uses standard tyres sized 16.9-24.

What are the excavation performance specifications of the JCB 4CX SM backhoe loader?

The JCB 4CX SM has a dredging depth of 4.32 meters and a maximum horizontal reach of 5.4 meters.

Is power rating information available for the JCB 4CX SM backhoe loader?

The source data does not provide power rating information for the JCB 4CX SM backhoe loader.

What is the maximum discharge height of the JCB 4CX SM?

The JCB 4CX SM has a maximum discharge height of 2.69 meters.

What are the specifications of the primary work tool on the JCB 4CX SM backhoe loader?

The primary work tool of the JCB 4CX SM backhoe loader has a bucket capacity of 1.2 cubic meters and a bucket width of 2.33 meters.

How much is a JCB 4CX SM Backhoe loader (2009u20132016) worth?

The residual value of the JCB 4CX SM depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
