4CX Plus JCB 4CX Plus Specifications & Technical Data (2021—2026)

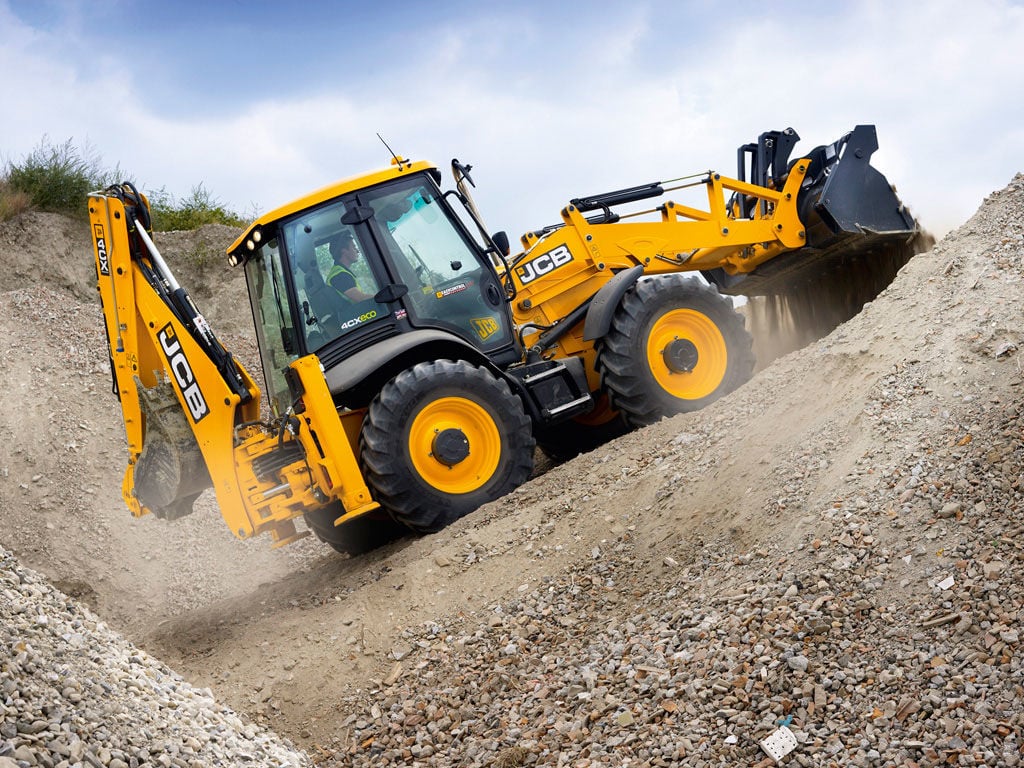

The JCB 4CX Plus is a backhoe loader manufactured by JCB since 2021. It has a weight of 8.58 tons and a transport length of 5.91 m…

The JCB 4CX Plus is a backhoe loader manufactured by JCB since 2021. It has a weight of 8.58 tons and a transport length of 5.91 meters. The bucket capacity is 1 cubic meter, with a dredging depth of 4.32 meters and a bucket width of 2.35 meters. The maximum discharge height is 2.69 meters, and it has a maximum reach horizontal of 5.4 meters. The travel speed of this backhoe loader is 40 kilometers per hour. It has a transport width of 2.36 meters and a transport height of 3.62 meters. Additionally, it is equipped with outrigger stabilizers as special equipment.

Backhoe Loaders JCB 4CX Plus

Visit JCB live at

Technical specs - 4CX Plus JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.58 t
Standard tyres
440/80-28
Bucket width
2.35 m
Bucket capacity
1 m³
Drive
A
Transport length
5.91 m
Transport width
2.36 m
Transport height
3.62 m
Tear-out force
52.8 kN
Max. Reach horizontal
5.4 m
Dredging depth
4.32 m
Max. discharge height
2.69 m
Travel speed
40 km/h
Model series
CX
Engine manuf.
JCB
Engine type
EcoMax
Engine power
72 kW
Displacement
4.8 l
Revolutions at max torque
1450 rpm
Max. torque
450 Nm
No. of cylinders
4
Cylinder bore x stroke
106x112 mm
Emission level
V

More technical details, like: bucket capacity backhoe, tear-out force backhoe, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
Yes
Forklift utility
Yes
Grabber
No
Diesel particulate filter
Yes
Aircondition
Yes

Download datasheets (PDF)

JCB 4CX Plus FAQ

When was the JCB 4CX Plus manufactured?

The JCB 4CX Plus was first produced in 2021.

How much does the JCB 4CX Plus weigh?

The JCB 4CX Plus weighs 8.58 tons.

What are the transport dimensions of the JCB 4CX Plus backhoe loader?

The JCB 4CX Plus has a transport length of 5.91 meters, a transport width of 2.36 meters, and a transport height of 3.62 meters.

What is the travel speed of the JCB 4CX Plus backhoe loader?

The JCB 4CX Plus backhoe loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the JCB 4CX Plus backhoe loader?

The JCB 4CX Plus backhoe loader features an all-wheel drive system and standard tyres sized 440/80-28.

What are the dredging depth and maximum horizontal reach of the JCB 4CX Plus backhoe loader?

The JCB 4CX Plus has a dredging depth of 4.32 meters and a maximum horizontal reach of 5.4 meters.

What is the tear-out force of the JCB 4CX Plus backhoe loader?

The JCB 4CX Plus backhoe loader has a tear-out force of 52.8 kN.

What is the maximum discharge height of the JCB 4CX Plus?

The JCB 4CX Plus has a maximum discharge height of 2.69 meters.

What are the bucket specifications of the JCB 4CX Plus backhoe loader?

The JCB 4CX Plus backhoe loader has a bucket capacity of 1 cubic meter and a bucket width of 2.35 meters.
