4CX JCB 4CX Specifications & Technical Data (2009—2017)

The JCB 4CX is a backhoe loader manufactured by JCB from 2009 to 2017. It has a weight of 8.39 tons and a transport length of 5.91…

The JCB 4CX is a backhoe loader manufactured by JCB from 2009 to 2017. It has a weight of 8.39 tons and a transport length of 5.91 meters. The bucket capacity is 1.2 cubic meters, with a dredging depth of 4.98 meters and a bucket width of 2.33 meters. The maximum discharge height is 2.69 meters, and it has a maximum reach horizontal of 6.01 meters. The transport width is 2.36 meters, and the transport height is 3.97 meters. This construction machine is equipped with special equipment including a clamshell, forklift utility, and outrigger stabilizers.

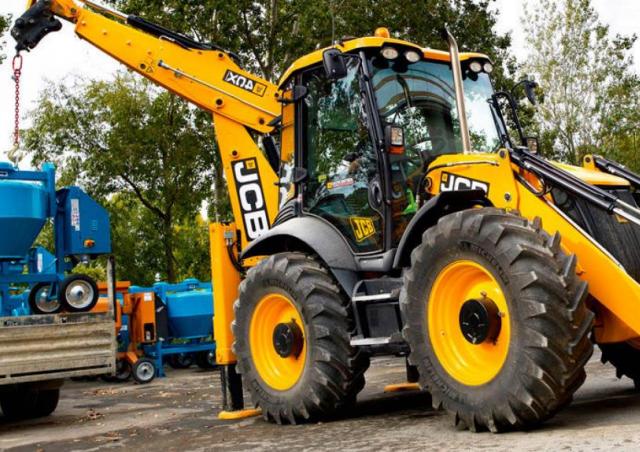

Backhoe Loaders JCB 4CX
Backhoe Loaders JCB 4CX
Backhoe Loaders JCB 4CX
Backhoe Loaders JCB 4CX

Visit JCB live at

Technical specs - 4CX JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.39 t
Bucket width
2.33 m
Bucket capacity
1.2 m³
Drive
A
Transport length
5.91 m
Transport width
2.36 m
Transport height
3.97 m
Tear-out force
52.8 kN
Max. Reach horizontal
6.01 m
Dredging depth
4.98 m
Max. discharge height
2.69 m
Model series
CX
Engine manuf.
JCB
Engine type
444
Engine power
81 kW
Displacement
4.4 l
Revolutions at max torque
1300 rpm
Max. torque
516 Nm
No. of cylinders
4
Cylinder bore x stroke
103x132 mm

More technical details, like: standard tyres, bucket capacity backhoe, tear-out force backhoe, travel speed, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
Yes
Forklift utility
Yes
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

JCB 4CX FAQ

When was the JCB 4CX manufactured?

The JCB 4CX was manufactured from 2009 to 2017.

How much does the JCB 4CX backhoe loader weigh?

The JCB 4CX backhoe loader weighs 8.39 tons.

What are the transport dimensions of the JCB 4CX backhoe loader?

The JCB 4CX backhoe loader has a transport length of 5.91 meters, a transport width of 2.36 meters, and a transport height of 3.97 meters.

What type of drive system does the JCB 4CX backhoe loader have in its undercarriage?

The JCB 4CX backhoe loader has an all-wheel drive system in its undercarriage.

What are the excavation performance specifications of the JCB 4CX backhoe loader?

The JCB 4CX backhoe loader has a dredging depth of 4.98 meters and a maximum horizontal reach of 6.01 meters.

What is the tear-out force of the JCB 4CX backhoe loader?

The JCB 4CX backhoe loader has a tear-out force of 52.8 kN.

What is the maximum discharge height of the JCB 4CX?

The JCB 4CX has a maximum discharge height of 2.69 meters.

What are the bucket specifications of the JCB 4CX backhoe loader?

The JCB 4CX backhoe loader has a bucket capacity of 1.2 cubic meters and a bucket width of 2.33 meters.

How much is a JCB 4CX Backhoe loader (2009u20132017) worth?

The residual value of the JCB 4CX depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
