4CN JCB 4CN Specifications & Technical Data (2009—2017)

The JCB 4CN is a backhoe loader manufactured by JCB from 2009 to 2017. It has a weight of 8.85 tons and a transport length of 7.53…

The JCB 4CN is a backhoe loader manufactured by JCB from 2009 to 2017. It has a weight of 8.85 tons and a transport length of 7.53 meters. The bucket capacity is 1.2 cubic meters, with a tear-out force of 61.06 kilonewtons. It can dredge up to a depth of 4.85 meters and has a bucket width of 2.33 meters. The maximum discharge height is 2.69 meters, and it has a maximum reach horizontal of 5.93 meters. The travel speed of this backhoe loader is 40 kilometers per hour. It has a transport width of 2.36 meters and a transport height of 3.91 meters. Additionally, it is equipped with special equipment including a clamshell, forklift utility, and outrigger stabilizers. The backhoe bucket capacity is 0.26 cubic meters, and it has a tear-out force of 67.95 kilonewtons.

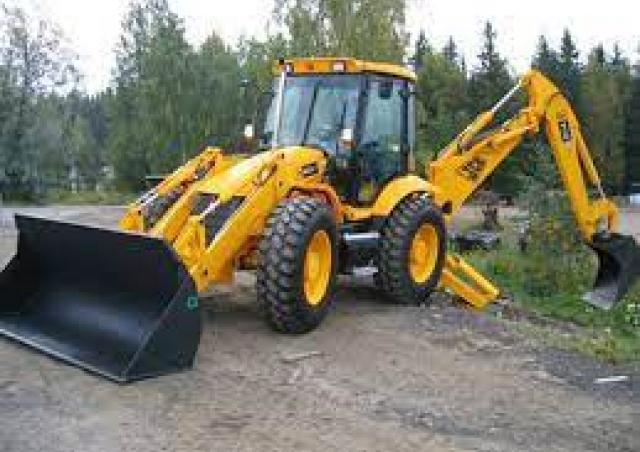

Backhoe Loaders JCB 4CN

Visit JCB live at

Technical specs - 4CN JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.85 t
Bucket width
2.33 m
Bucket capacity
1.2 m³
Bucket capacity backhoe
0.26 m³
Drive
A
Transport length
7.53 m
Transport width
2.36 m
Transport height
3.91 m
Tear-out force
61.06 kN
Tear-out force backhoe
67.95 kN
Max. Reach horizontal
5.93 m
Dredging depth
4.85 m
Max. discharge height
2.69 m
Travel speed
40 km/h
Model series
CN
Engine manuf.
JCB
Engine type
444
Engine power
81 kW
Displacement
4.4 l
Revolutions at max torque
1300 rpm
Max. torque
516 Nm
No. of cylinders
4
Cylinder bore x stroke
103x132 mm

More technical details, like: standard tyres, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
Yes
Forklift utility
Yes
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

JCB 4CN FAQ

When was the JCB 4CN backhoe loader manufactured?

The JCB 4CN backhoe loader was manufactured from 2009 to 2017.

How much does the JCB 4CN backhoe loader weigh?

The JCB 4CN backhoe loader weighs 8.85 tons.

What are the transport dimensions of the JCB 4CN backhoe loader?

The JCB 4CN has a transport length of 7.53 meters, a transport width of 2.36 meters, and a transport height of 3.91 meters.

What is the travel speed of the JCB 4CN backhoe loader?

The JCB 4CN backhoe loader has a travel speed of 40 km/h.

What type of undercarriage drive does the JCB 4CN have?

The JCB 4CN has an all-wheel drive undercarriage.

What are the excavation performance specifications of the JCB 4CN backhoe loader?

The JCB 4CN backhoe loader has a dredging depth of 4.85 meters and a maximum horizontal reach of 5.93 meters.

What are the tear-out forces of the JCB 4CN backhoe loader?

The JCB 4CN backhoe loader has a tear-out force of 61.06 kN and a tear-out force for the backhoe of 67.95 kN.

What is the maximum discharge height of the JCB 4CN?

The JCB 4CN has a maximum discharge height of 2.69 meters.

What are the specifications of the primary work tool on the JCB 4CN backhoe loader?

The primary work tool of the JCB 4CN has a bucket capacity of 1.2 cubic meters and a bucket width of 2.33 meters.

How much is a JCB 4CN Backhoe loader (2009u20132017) worth?

The residual value of the JCB 4CN depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
