4 CX SM PC JCB 4 CX SM PC Specifications & Technical Data (2003—2007)

The JCB 4 CX SM PC is a backhoe loader manufactured by JCB from 2003 to 2007. It has a weight of 8.66 tons and a transport length …

The JCB 4 CX SM PC is a backhoe loader manufactured by JCB from 2003 to 2007. It has a weight of 8.66 tons and a transport length of 5.91 meters. The bucket capacity is 1.3 cubic meters, with a tear-out force of 54.8 kN. It can dredge up to a depth of 5.88 meters and has a bucket width of 2.33 meters. The maximum discharge height is 2.69 meters, and it can reach a maximum horizontal distance of 6.26 meters. The transport width is 2.36 meters, and the transport height is 3.62 meters. It is equipped with special features such as a clamshell, forklift utility, and outrigger stabilizers.

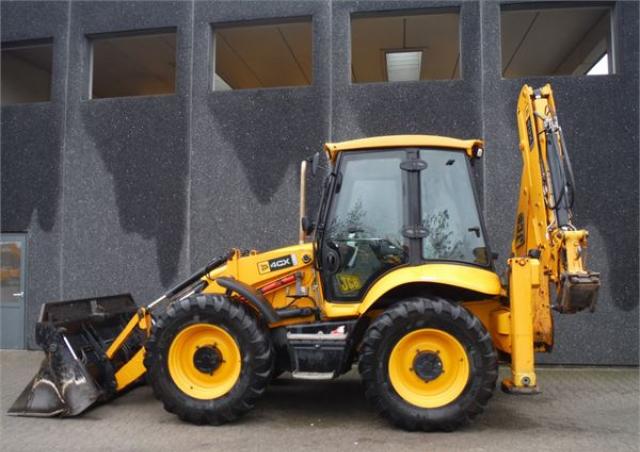

Backhoe Loaders JCB 4 CX SM PC
Backhoe Loaders JCB 4 CX SM PC
Backhoe Loaders JCB 4 CX SM PC
Backhoe Loaders JCB 4 CX SM PC

Visit JCB live at

Technical specs - 4 CX SM PC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.66 t
Standard tyres
16.9/14x24 12PR
Bucket width
2.33 m
Bucket capacity
1.3 m³
Drive
A
Transport length
5.91 m
Transport width
2.36 m
Transport height
3.62 m
Tear-out force
54.8 kN
Max. Reach horizontal
6.26 m
Dredging depth
5.88 m
Max. discharge height
2.69 m
Model series
CX
Engine manuf.
Perkins
Engine type
1004
Engine power
74.6 kW
Displacement
3.99 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity backhoe, tear-out force backhoe, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, backhoe type, engine manufacturer, engine model, aspiration...

More technical details, like: bucket capacity backhoe, tear-out force backhoe, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, backhoe type, engine manufacturer, engine model, aspiration, rated speed, engine output - net, engine output - gross, transmission type, number of travel speeds, drive - 2wd / 4wd, service brake type, length - roading, height - over cab, maximum height, width, ground clearance, width - standard shovel, stabiliser type, maximum dig depth - longest dipper, dig depth - sae, dig depth - sae retracted dipper, dig depth - sae extended dipper, reach from slew pivot - non-extending dipper, reach from slew pivot - retracted dipper, reach from slew pivot - extended dipper, loading height - non-extending dipper, loading height - retracted dipper, loading height - extended dipper, dump height - general purpose, dump angle - general purpose, dump height - multi-purpose, dump angle - multi-purpose, fuel tank, shovel capacity - standard general purpose, shovel capacity - multi-purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose, shovel breakout - multi-purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
Yes
Forklift utility
Yes
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

JCB 4 CX SM PC FAQ

When was the JCB 4 CX SM PC manufactured?

The JCB 4 CX SM PC was manufactured from 2003 to 2007.

How much does the JCB 4 CX SM PC weigh?

The JCB 4 CX SM PC weighs 8.66 tons.

What are the transport dimensions of the JCB 4 CX SM PC backhoe loader?

The JCB 4 CX SM PC has a transport length of 5.91 meters, a transport width of 2.36 meters, and a transport height of 3.62 meters.

What are the undercarriage specifications of the JCB 4 CX SM PC backhoe loader?

The JCB 4 CX SM PC backhoe loader has an all-wheel drive system and standard tyres sized 16.9/14x24 12PR.

What is the excavation performance of the JCB 4 CX SM PC backhoe loader?

The JCB 4 CX SM PC has a dredging depth of 5.88 meters and a maximum horizontal reach of 6.26 meters.

What is the tear-out force of the JCB 4 CX SM PC backhoe loader?

The JCB 4 CX SM PC backhoe loader has a tear-out force of 54.8 kN.

What is the maximum discharge height of the JCB 4 CX SM PC?

The JCB 4 CX SM PC has a maximum discharge height of 2.69 meters.

What are the specifications of the primary work tool bucket on the JCB 4 CX SM PC?

The primary work tool bucket of the JCB 4 CX SM PC has a capacity of 1.3 cubic meters and a width of 2.33 meters.

How much is a JCB 4 CX SM PC Backhoe loader (2003u20132007) worth?

The residual value of the JCB 4 CX SM PC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
