4 CX SM JCB 4 CX SM Specifications & Technical Data (2008—2017)

Model rating
7,00 / 10

The JCB 4 CX SM is a backhoe loader manufactured by JCB from 2008 to 2017. It has a weight of 8.66 tons and a transport length of …

The JCB 4 CX SM is a backhoe loader manufactured by JCB from 2008 to 2017. It has a weight of 8.66 tons and a transport length of 5.91 meters. The bucket capacity is 1.1 cubic meters, with a tear-out force of 61.06 kN. It has a dredging depth of 5.88 meters and a bucket width of 2.35 meters. The maximum discharge height is 2.69 meters, and the maximum reach horizontal is 6.54 meters. It has a travel speed of 40 km/h. The transport width is 2.35 meters, and the transport height is 3.67 meters. It also has special equipment including a clamshell, forklift utility, and outrigger stabilizers.

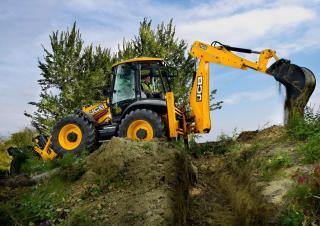

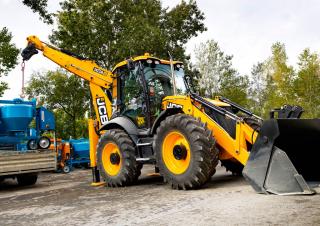

Backhoe Loaders JCB 4 CX SM
Backhoe Loaders JCB 4 CX SM
Backhoe Loaders JCB 4 CX SM
Backhoe Loaders JCB 4 CX SM
Backhoe Loaders JCB 4 CX SM
Backhoe Loaders JCB 4 CX SM
Backhoe Loaders JCB 4 CX SM
Backhoe Loaders JCB 4 CX SM
Backhoe Loaders JCB 4 CX SM
Backhoe Loaders JCB 4 CX SM

Visit JCB live at

Technical specs - 4 CX SM JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.66 t
Standard tyres
16.9-24
Bucket width
2.35 m
Bucket capacity
1.1 m³
Bucket capacity backhoe
0.26 m³
Drive
A
Transport length
5.91 m
Transport width
2.35 m
Transport height
3.67 m
Tear-out force
61.06 kN
Tear-out force backhoe
61.09 kN
Max. Reach horizontal
6.54 m
Dredging depth
5.88 m
Max. discharge height
2.69 m
Travel speed
40 km/h
Model series
CX
Engine manuf.
JCB
Engine type
444
Engine power
74.2 kW

More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, backhoe type, engine manufacturer, engine model, aspiration, rated speed...

More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, backhoe type, engine manufacturer, engine model, aspiration, rated speed, engine output - net, engine output - gross, transmission type, number of travel speeds, drive - 2wd / 4wd, service brake type, length - roading, height - over cab, maximum height, width, ground clearance, width - standard shovel, stabiliser type, maximum dig depth - longest dipper, dig depth - sae, dig depth - sae retracted dipper, dig depth - sae extended dipper, reach from slew pivot - non-extending dipper, reach from slew pivot - retracted dipper, reach from slew pivot - extended dipper, loading height - non-extending dipper, loading height - retracted dipper, loading height - extended dipper, dump height - general purpose, dump angle - general purpose, dump height - multi-purpose, dump angle - multi-purpose, fuel tank, shovel capacity - standard general purpose, shovel capacity - multi-purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose, shovel breakout - multi-purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
Yes
Forklift utility
Yes
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

JCB 4 CX SM FAQ

When was the JCB 4 CX SM manufactured?

The JCB 4 CX SM was manufactured from 2008 to 2017.

How much does the JCB 4 CX SM backhoe loader weigh?

The JCB 4 CX SM backhoe loader weighs 8.66 tons.

What are the transport dimensions of the JCB 4 CX SM backhoe loader?

The JCB 4 CX SM has a transport length of 5.91 meters, a transport width of 2.35 meters, and a transport height of 3.67 meters.

What is the travel speed of the JCB 4 CX SM backhoe loader?

The JCB 4 CX SM backhoe loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the JCB 4 CX SM backhoe loader?

The JCB 4 CX SM backhoe loader features an all-wheel drive system and standard tyres sized 16.9-24.

What are the excavation performance specifications of the JCB 4 CX SM backhoe loader?

The JCB 4 CX SM has a dredging depth of 5.88 meters and a maximum horizontal reach of 6.54 meters.

What are the tear-out forces of the JCB 4 CX SM backhoe loader?

The JCB 4 CX SM has a tear-out force of 61.06 kN and a backhoe tear-out force of 61.09 kN.

What is the maximum discharge height of the JCB 4 CX SM?

The JCB 4 CX SM has a maximum discharge height of 2.69 meters.

What are the specifications of the primary work tools on the JCB 4 CX SM backhoe loader?

The JCB 4 CX SM features a front loader bucket with a capacity of 1.1 cubic meters and a width of 2.35 meters, and a backhoe bucket with a capacity of 0.26 cubic meters.

How much is a JCB 4 CX SM Backhoe loader (2008u20132017) worth?

The residual value of the JCB 4 CX SM depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
