1CX-8 JCB 1CX-8 Specifications & Technical Data (2011—2022)

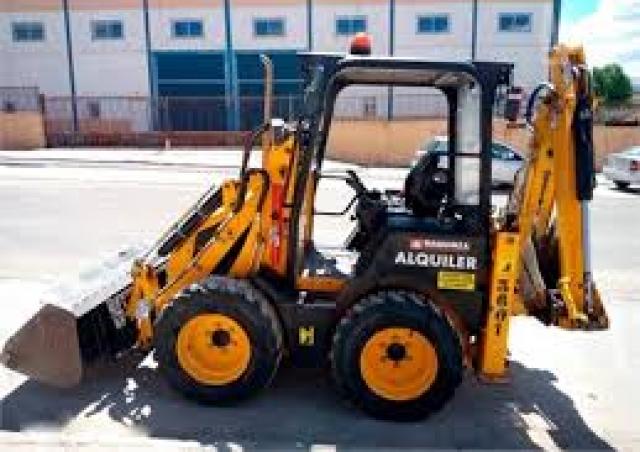

The JCB 1CX-8 is a backhoe loader manufactured by JCB from 2011 to 2022. It has a weight of 2.79 tons and a transport length of 3.…

The JCB 1CX-8 is a backhoe loader manufactured by JCB from 2011 to 2022. It has a weight of 2.79 tons and a transport length of 3.4 meters. The bucket capacity is 0.28 cubic meters, with a dredging depth of 2.55 meters. It has a bucket width of 1.43 meters and a maximum discharge height of 3.44 meters. The maximum reach horizontal is 4.24 meters, and the travel speed of this backhoe loader is 11.2 kilometers per hour. It has a transport width of 1.43 meters and a transport height of 2.26 meters.

Backhoe Loaders JCB 1CX-8

Visit JCB live at

Technical specs - 1CX-8 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.79 t
Standard tyres
7X15 NHS 6PR
Bucket width
1.43 m
Bucket capacity
0.28 m³
Transport length
3.4 m
Transport width
1.43 m
Transport height
2.26 m
Max. Reach horizontal
4.24 m
Dredging depth
2.55 m
Max. discharge height
3.44 m
Travel speed
11.2 km/h
Engine manuf.
JCB
Engine type
404C-22
Engine power
37.3 kW
Displacement
2.2 l
Revolutions at max torque
2800 rpm
Max. torque
135 Nm
No. of cylinders
4
Emission level
Tier 2

More technical details, like: bucket capacity backhoe, drive, tear-out force, tear-out force backhoe, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

JCB 1CX-8 FAQ

When was the JCB 1CX-8 manufactured?

The JCB 1CX-8 was manufactured from 2011 to 2022.

How much does the JCB 1CX-8 backhoe loader weigh?

The JCB 1CX-8 backhoe loader weighs 2.79 tons.

What are the transport dimensions of the JCB 1CX-8 backhoe loader?

The JCB 1CX-8 has a transport length of 3.4 meters, a transport width of 1.43 meters, and a transport height of 2.26 meters.

What is the travel speed of the JCB 1CX-8 backhoe loader?

The JCB 1CX-8 backhoe loader has a travel speed of 11.2 km/h.

What are the undercarriage specifications of the JCB 1CX-8 backhoe loader?

The JCB 1CX-8 backhoe loader comes with standard tyres sized 7X15 NHS 6PR.

What are the excavation performance specifications of the JCB 1CX-8 backhoe loader?

The JCB 1CX-8 backhoe loader has a dredging depth of 2.55 meters and a maximum horizontal reach of 4.24 meters.

What is the maximum discharge height of the JCB 1CX-8?

The JCB 1CX-8 has a maximum discharge height of 3.44 meters.

What are the specifications of the bucket on the JCB 1CX-8 backhoe loader?

The JCB 1CX-8 backhoe loader has a bucket capacity of 0.28 cubic meters and a bucket width of 1.43 meters.

How much is a JCB 1CX-8 Backhoe loader (2011u20132022) worth?

The residual value of the JCB 1CX-8 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
