H 908 E-ESD Hydrema H 908 E-ESD Specifications & Technical Data (2013—2019)

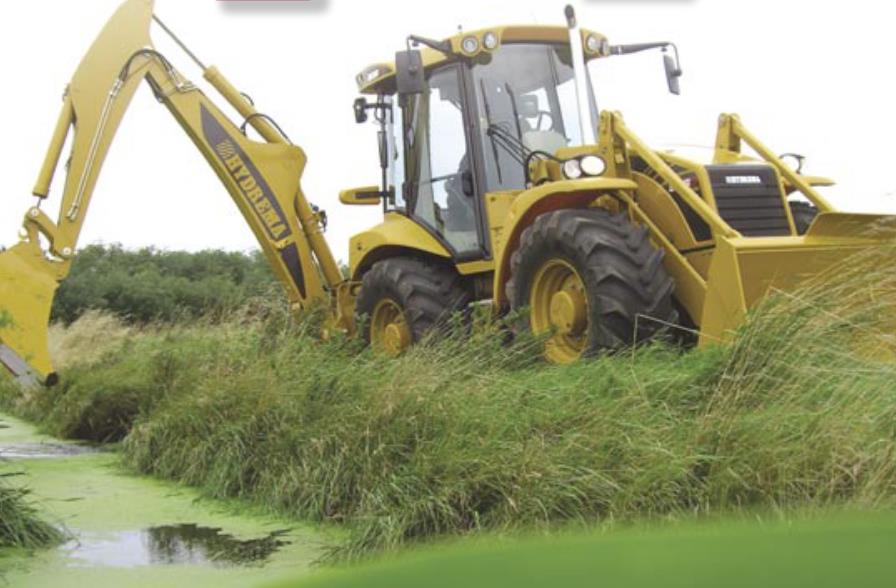

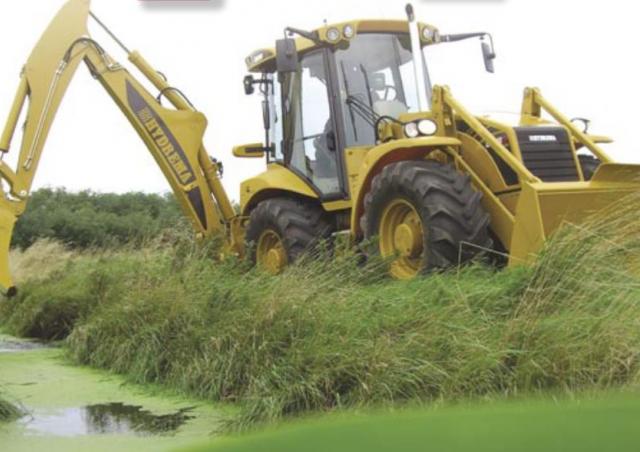

The Hydrema H 908 E-ESD is a backhoe loader manufactured by Hydrema from 2013 to 2019. It has a weight of 9.1 tons and a bucket ca…

The Hydrema H 908 E-ESD is a backhoe loader manufactured by Hydrema from 2013 to 2019. It has a weight of 9.1 tons and a bucket capacity of 1.4 cubic meters. The tear-out force of this machine is 73 kilonewtons, and it can dredge up to a depth of 5.33 meters. The bucket width is 2.55 meters, and the maximum discharge height is 2.93 meters. It has a maximum reach horizontal of 6.5 meters. The transport width is 2.31 meters, and the transport height is 4.1 meters. This backhoe loader is equipped with special equipment including air conditioning, a clamshell, and outrigger stabilizers. The backhoe bucket capacity is 0.43 cubic meters, and it has a tear-out force of 37.6 kilonewtons.

Backhoe Loaders Hydrema H 908 E-ESD

Visit Hydrema live at

Technical specs - H 908 E-ESD Hydrema

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.1 t
Standard tyres
500/70x28
Bucket width
2.55 m
Bucket capacity
1.4 m³
Bucket capacity backhoe
0.43 m³
Drive
A
Transport width
2.31 m
Transport height
4.1 m
Tear-out force
73 kN
Tear-out force backhoe
37.6 kN
Max. Reach horizontal
6.5 m
Dredging depth
5.33 m
Max. discharge height
2.93 m
Model series
E
Engine manuf.
Cummins
Engine type
QSB4.5
Engine power
86 kW
Displacement
4.5 l
Revolutions at max torque
1500 rpm

More technical details, like: transport length, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
Yes
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
Yes

Download datasheets (PDF)

Hydrema H 908 E-ESD FAQ

When was the Hydrema H 908 E-ESD manufactured?

The Hydrema H 908 E-ESD was manufactured from 2013 to 2019.

How much does the Hydrema H 908 E-ESD weigh?

The Hydrema H 908 E-ESD weighs 9.1 tons.

What are the transport dimensions of the Hydrema H 908 E-ESD?

The Hydrema H 908 E-ESD has a transport width of 2.31 meters and a transport height of 4.1 meters.

What are the undercarriage specifications of the Hydrema H 908 E-ESD backhoe loader?

The Hydrema H 908 E-ESD backhoe loader has an all-wheel drive and is equipped with standard tyres sized 500/70x28.

What are the dredging depth and maximum horizontal reach of the Hydrema H 908 E-ESD backhoe loader?

The Hydrema H 908 E-ESD has a dredging depth of 5.33 meters and a maximum horizontal reach of 6.5 meters.

What are the tear-out forces of the Hydrema H 908 E-ESD backhoe loader?

The Hydrema H 908 E-ESD has a tear-out force of 73 kN and a backhoe tear-out force of 37.6 kN.

What is the maximum discharge height of the Hydrema H 908 E-ESD for material handling?

The Hydrema H 908 E-ESD has a maximum discharge height of 2.93 meters for material handling.

What are the specifications of the primary work tools on the Hydrema H 908 E-ESD backhoe loader?

The Hydrema H 908 E-ESD features a front loader bucket with a capacity of 1.4 cubic meters and a width of 2.55 meters, and a backhoe bucket with a capacity of 0.43 cubic meters.

How much is a Hydrema H 908 E-ESD Backhoe loader (2013u20132019) worth?

The residual value of the Hydrema H 908 E-ESD depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
