926G Hydrema 926G Specifications & Technical Data (2022—2026)

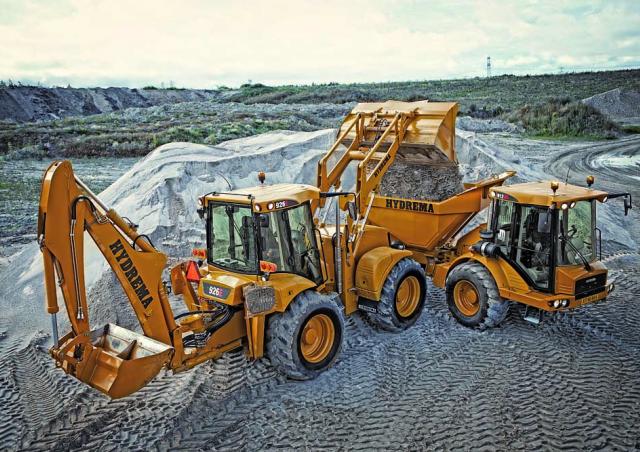

The Hydrema 926G is a backhoe loader manufactured by Hydrema since 2022. It has a bucket capacity of 1.7 cubic meters and a tear-o…

The Hydrema 926G is a backhoe loader manufactured by Hydrema since 2022. It has a bucket capacity of 1.7 cubic meters and a tear-out force of 85 kilonewtons. This construction machine can dredge up to a depth of 4.79 meters and has a bucket width of 2.55 meters. The maximum discharge height is 2.81 meters, and it has a maximum reach horizontal of 6.25 meters. The transport width is 2.29 meters, and the transport height is 4.01 meters. The backhoe bucket capacity is 0.43 cubic meters, with a tear-out force of 38.4 kilonewtons. The special equipment includes air conditioning, a clamshell, a diesel particulate filter, a forklift utility, a grabber, and outrigger stabilizers.

Backhoe Loaders Hydrema 926G

Visit Hydrema live at

Technical specs - 926G Hydrema

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Standard tyres
480/80x26”
Bucket width
2.55 m
Bucket capacity
1.7 m³
Bucket capacity backhoe
0.43 m³
Drive
A
Transport width
2.29 m
Transport height
4.01 m
Tear-out force
85 kN
Tear-out force backhoe
38.4 kN
Max. Reach horizontal
6.25 m
Dredging depth
4.79 m
Max. discharge height
2.81 m
Model series
G
Engine manuf.
Cummins
Engine type
QSB4.5
Engine power
108 kW
Displacement
4.5 l
Revolutions at max torque
1500 rpm
Max. torque
597 Nm
Emission level
V

More technical details, like: weight, transport length, travel speed, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
Yes
Forklift utility
Yes
Grabber
Yes
Diesel particulate filter
Yes
Aircondition
Yes

Download datasheets (PDF)

Hydrema 926G FAQ

When was the Hydrema 926G manufactured?

The Hydrema 926G was first produced in 2022.

What are the transport dimensions of the Hydrema 926G?

The Hydrema 926G has a transport width of 2.29 meters and a transport height of 4.01 meters.

What are the undercarriage specifications of the Hydrema 926G backhoe loader?

The Hydrema 926G features an all-wheel drive system and comes equipped with standard tyres sized 480/80x26 inches.

What are the excavation performance specifications of the Hydrema 926G backhoe loader?

The Hydrema 926G has a dredging depth of 4.79 meters and a maximum horizontal reach of 6.25 meters.

What are the tear-out forces of the Hydrema 926G backhoe loader?

The Hydrema 926G has a tear-out force of 85 kN and a backhoe tear-out force of 38.4 kN.

What is the maximum discharge height of the Hydrema 926G?

The Hydrema 926G has a maximum discharge height of 2.81 meters.

What are the specifications of the primary loader bucket on the Hydrema 926G?

The Hydrema 926G has a primary loader bucket with a capacity of 1.7 cubic meters and a width of 2.55 meters.

How much is a Hydrema 926G Backhoe loader (2022u20132025) worth?

The residual value of the Hydrema 926G depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
