HMK 102 B Alpha Hidromek HMK 102 B Alpha Specifications & Technical Data (2016—2022)

The Hidromek HMK 102 B Alpha is a backhoe loader manufactured by Hidromek from 2016 to 2022. It has a weight of 9.38 tons and a tr…

The Hidromek HMK 102 B Alpha is a backhoe loader manufactured by Hidromek from 2016 to 2022. It has a weight of 9.38 tons and a transport length of 6.05 meters. The bucket capacity is 1.1 cubic meters, with a tear-out force of 76.14 kN. The dredging depth is 5.627 meters, and the bucket width is 2.44 meters. The maximum discharge height is 4.735 meters, and the maximum reach horizontal is 6.845 meters. It has a travel speed of 40 km/h. The transport width is 2.292 meters, and the transport height is 3.593 meters. The backhoe has a bucket capacity of 0.18 cubic meters and a tear-out force of 33.68 kN. Special equipment includes air conditioning, a clamshell, a diesel particulate filter, forklift utility, and outrigger stabilizers.

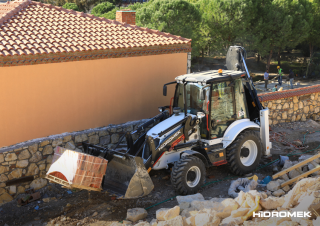

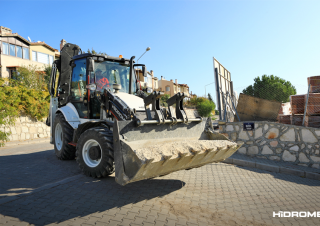

Backhoe Loaders Hidromek HMK 102 B Alpha

Visit Hidromek live at

HMK 102 B Alpha

Years of manufacture: 2016—2022

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - HMK 102 B Alpha Hidromek

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 9.38 t

Standard tyres: VR 16/70x20-12PR HR 16.9-28 14PRVR

Bucket width: 2.44 m

Bucket capacity: 1.1 m³

Bucket capacity backhoe: 0.18 m³

Drive: A

Transport length: 6.05 m

Transport width: 2.292 m

Transport height: 3.593 m

Tear-out force: 76.14 kN

Tear-out force backhoe: 33.68 kN

Max. Reach horizontal: 6.845 m

Dredging depth: 5.627 m

Max. discharge height: 4.735 m

Travel speed: 40 km/h

Engine manuf.: Perkins

Engine type: 1204F-E44TAN

Engine power: 74.4 kW

Displacement: 4.4 l

Revolutions at max torque: 1400 rpm

Max. torque: 450 Nm

No. of cylinders: 4

Cylinder bore x stroke: 105x127 mm

Emission level: U.S EPA Tier 4 Final/EU IV

More technical details, like: model series, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: Yes
Forklift utility: Yes
Grabber: No
Diesel particulate filter: Yes
Aircondition: Yes

Download datasheets (PDF)

Hidromek HMK 102 B Alpha FAQ

When was the Hidromek HMK 102 B Alpha manufactured?

The Hidromek HMK 102 B Alpha was manufactured from 2016 to 2022.

How much does the Hidromek HMK 102 B Alpha weigh?

The Hidromek HMK 102 B Alpha weighs 9.38 tons.

What are the transport dimensions of the Hidromek HMK 102 B Alpha backhoe loader?

The transport dimensions of the Hidromek HMK 102 B Alpha are 6.05 meters in length, 2.29 meters in width, and 3.59 meters in height.

What is the travel speed of the Hidromek HMK 102 B Alpha backhoe loader?

The Hidromek HMK 102 B Alpha has a travel speed of 40 km/h.

What are the undercarriage specifications of the Hidromek HMK 102 B Alpha backhoe loader?

The Hidromek HMK 102 B Alpha features an all-wheel drive and standard tyres sized Front: 16/70x20-12PR and Rear: 16.9-28 14PRVR.

What are the excavation performance specifications of the Hidromek HMK 102 B Alpha?

The Hidromek HMK 102 B Alpha has a dredging depth of 5.627 meters and a maximum horizontal reach of 6.845 meters.

What are the tear-out forces of the Hidromek HMK 102 B Alpha backhoe loader?

The Hidromek HMK 102 B Alpha has a tear-out force of 76.14 kN and a tear-out force for the backhoe of 33.68 kN.

What is the maximum discharge height of the Hidromek HMK 102 B Alpha backhoe loader?

The Hidromek HMK 102 B Alpha has a maximum discharge height of 4.74 meters.

What are the specifications of the primary work tool on the Hidromek HMK 102 B Alpha backhoe loader?

The Hidromek HMK 102 B Alpha features a loader bucket with a capacity of 1.1 cubic meters and a width of 2.44 meters, and a backhoe bucket with a capacity of 0.18 cubic meters.

How much is a Hidromek HMK 102 B Alpha Backhoe loader (2016u20132022) worth?

The residual value of the Hidromek HMK 102 B Alpha depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
