HMK 102 B Alpha Hidromek HMK 102 B Alpha Specifications & Technical Data (2014—2020)

The Hidromek HMK 102 B Alpha is a backhoe loader manufactured by Hidromek from 2014 to 2020. It has a weight of 9.1 tons and a tra…

The Hidromek HMK 102 B Alpha is a backhoe loader manufactured by Hidromek from 2014 to 2020. It has a weight of 9.1 tons and a transport length of 6.049 meters. The bucket capacity is 1.1 cubic meters, with a tear-out force of 62.4 kN. The dredging depth is 5.627 meters, and the bucket width is 2.44 meters. The maximum discharge height is 4.735 meters, and the maximum reach horizontal is 6.845 meters. It has a travel speed of 40 km/h. The transport width is 2.292 meters, and the transport height is 3.593 meters. The backhoe has a bucket capacity of 0.17 cubic meters and a tear-out force of 28.11 kN. Special equipment includes air conditioning, a clamshell, a diesel particulate filter, forklift utility, and outrigger stabilizers.

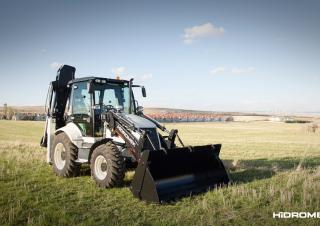

Backhoe Loaders Hidromek HMK 102 B Alpha

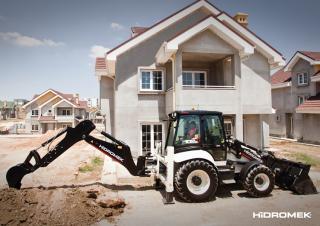

Backhoe Loaders Hidromek HMK 102 B Alpha
Backhoe Loaders Hidromek HMK 102 B Alpha
Backhoe Loaders Hidromek HMK 102 B Alpha
Backhoe Loaders Hidromek HMK 102 B Alpha
Backhoe Loaders Hidromek HMK 102 B Alpha
Backhoe Loaders Hidromek HMK 102 B Alpha
Backhoe Loaders Hidromek HMK 102 B Alpha
Backhoe Loaders Hidromek HMK 102 B Alpha
Backhoe Loaders Hidromek HMK 102 B Alpha
Backhoe Loaders Hidromek HMK 102 B Alpha
Backhoe Loaders Hidromek HMK 102 B Alpha

Visit Hidromek live at

Technical specs - HMK 102 B Alpha Hidromek

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.1 t
Standard tyres
VR 16/70x20-12PR HR 16.9-28 14PRVR
Bucket width
2.44 m
Bucket capacity
1.1 m³
Bucket capacity backhoe
0.17 m³
Drive
A
Transport length
6.049 m
Transport width
2.292 m
Transport height
3.593 m
Tear-out force
62.4 kN
Tear-out force backhoe
28.11 kN
Max. Reach horizontal
6.845 m
Dredging depth
5.627 m
Max. discharge height
4.735 m
Travel speed
40 km/h
Model series
HMK
Engine manuf.
Perkins
Engine type
1104D-44TA
Engine power
74.5 kW
Displacement
4.4 l
Revolutions at max torque
2200 rpm
Max. torque
410/1400 Nm
No. of cylinders
4
Cylinder bore x stroke
105x127 mm
Emission level
III A / Tier 3

More technical details, like: dimension lxwxh, backhoe type, telematics available, engine manufacturer, engine model, emission rating, aspiration, charged air cooling, rated speed, engine output - gross, torque rated speed, torque...

More technical details, like: dimension lxwxh, backhoe type, telematics available, engine manufacturer, engine model, emission rating, aspiration, charged air cooling, rated speed, engine output - gross, torque rated speed, torque, transmission type, number of travel speeds, drive - 2wd / 4wd, length - roading, height - over cab, maximum height, width, ground clearance, shovel quick-hitch, backhoe quick-hitch, width - standard shovel, stabiliser type, maximum dig depth - longest dipper, reach from slew pivot - non-extending dipper, reach from slew pivot - extended dipper, loading height - non-extending dipper, loading height - extended dipper, dump height - multi-purpose, dump angle - multi-purpose, shovel capacity - multi-purpose, shovel breakout - multi-purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
Yes
Forklift utility
Yes
Grabber
No
Diesel particulate filter
Yes
Aircondition
Yes

Download datasheets (PDF)

Hidromek HMK 102 B Alpha FAQ

When was the Hidromek HMK 102 B Alpha manufactured?

The Hidromek HMK 102 B Alpha was manufactured from 2014 to 2020.

How much does the Hidromek HMK 102 B Alpha weigh?

The Hidromek HMK 102 B Alpha weighs 9.1 tons.

What are the transport dimensions of the Hidromek HMK 102 B Alpha backhoe loader?

The transport dimensions of the Hidromek HMK 102 B Alpha are 6.05 meters in length, 2.29 meters in width, and 3.59 meters in height.

What is the travel speed of the Hidromek HMK 102 B Alpha backhoe loader?

The Hidromek HMK 102 B Alpha backhoe loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the Hidromek HMK 102 B Alpha backhoe loader?

The Hidromek HMK 102 B Alpha features an all-wheel drive system with standard tyres sized Front: 16/70x20-12PR and Rear: 16.9-28 14PRVR.

What are the dredging depth and maximum horizontal reach of the Hidromek HMK 102 B Alpha backhoe loader?

The Hidromek HMK 102 B Alpha has a dredging depth of 5.627 meters and a maximum horizontal reach of 6.845 meters.

What are the tear-out forces of the Hidromek HMK 102 B Alpha backhoe loader?

The Hidromek HMK 102 B Alpha has a tear-out force of 62.4 kN and a backhoe tear-out force of 28.11 kN.

What is the maximum discharge height of the Hidromek HMK 102 B Alpha?

The Hidromek HMK 102 B Alpha has a maximum discharge height of 4.74 meters.

What are the specifications of the primary work tool on the Hidromek HMK 102 B Alpha?

The Hidromek HMK 102 B Alpha has a main bucket with a capacity of 1.1 cubic meters and a width of 2.44 meters, and its backhoe bucket has a capacity of 0.17 cubic meters.

How much is a Hidromek HMK 102 B Alpha Backhoe loader (2014u20132020) worth?

The residual value of the Hidromek HMK 102 B Alpha depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
