FB 200.2 Fiat-Hitachi FB 200.2 Specifications & Technical Data (2000—2002)

Model rating
6,50 / 10

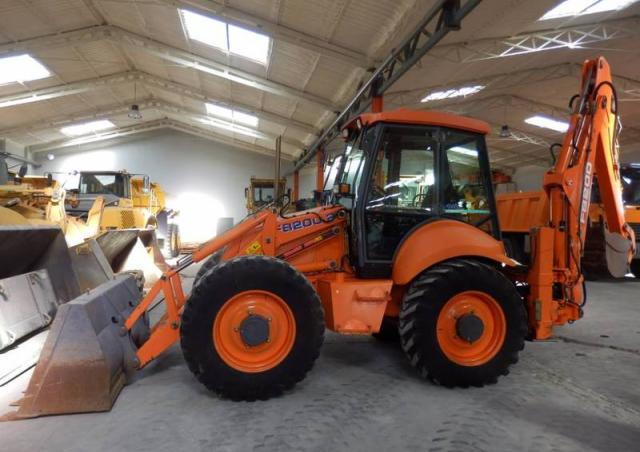

The Fiat-Hitachi FB 200.2 is a backhoe loader manufactured from 2000 to 2002. It has a weight of 8.7 tons and a transport length o…

The Fiat-Hitachi FB 200.2 is a backhoe loader manufactured from 2000 to 2002. It has a weight of 8.7 tons and a transport length of 6.03 meters. The bucket capacity is 1.2 cubic meters. The transport width measures 2.48 meters, while the transport height is 3.98 meters.

Backhoe Loaders Fiat-Hitachi FB 200.2

Technical specs - FB 200.2 Fiat-Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.7 t
Standard tyres
16.9-28
Bucket capacity
1.2 m³
Transport length
6.03 m
Transport width
2.48 m
Transport height
3.98 m
Model series
2
Engine manuf.
CNH
Engine type
450T-PD
Engine power
81 kW

More technical details, like: bucket width, bucket capacity backhoe, drive, tear-out force, tear-out force backhoe, max. reach horizontal, dredging depth, max. discharge height, travel speed, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: bucket width, bucket capacity backhoe, drive, tear-out force, tear-out force backhoe, max. reach horizontal, dredging depth, max. discharge height, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

Fiat-Hitachi FB 200.2 FAQ

When was the Fiat-Hitachi FB 200.2 manufactured?

The Fiat-Hitachi FB 200.2 was manufactured from 2000 to 2002.

How much does the Fiat-Hitachi FB 200.2 weigh?

The Fiat-Hitachi FB 200.2 weighs 8.7 tons.

What are the transport dimensions of the Fiat-Hitachi FB 200.2 backhoe loader?

The Fiat-Hitachi FB 200.2 has a transport length of 6.03 meters, a transport width of 2.48 meters, and a transport height of 3.98 meters.

What are the undercarriage tyre specifications of the Fiat-Hitachi FB 200.2 backhoe loader?

The Fiat-Hitachi FB 200.2 is equipped with standard tyres sized 16.9-28.

What is the bucket capacity of the Fiat-Hitachi FB 200.2 backhoe loader?

The bucket capacity of the Fiat-Hitachi FB 200.2 backhoe loader is 1.2 cubic meters.

How much is a Fiat-Hitachi FB 200.2 Backhoe loader (2000u20132002) worth?

The residual value of the Fiat-Hitachi FB 200.2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
