446 Caterpillar 446 Specifications & Technical Data (1989—1994)

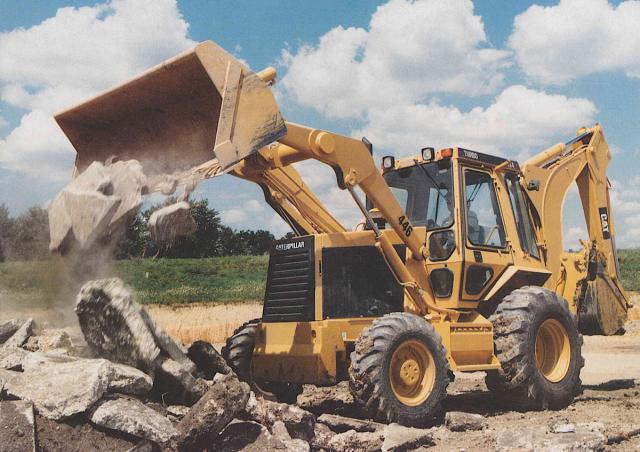

The Caterpillar 446 is a backhoe loader manufactured by Caterpillar since 1989. It has a weight of 8.78 tons and a transport lengt…

The Caterpillar 446 is a backhoe loader manufactured by Caterpillar since 1989. It has a weight of 8.78 tons and a transport length of 7.53 meters. The bucket capacity is 1.1 cubic meters, with a tear-out force of 55.8 kilonewtons. It can dredge up to a depth of 5.22 meters and has a bucket width of 2.43 meters. The maximum discharge height is 2.73 meters, and it has a maximum reach horizontal of 7.87 meters. The travel speed of this backhoe loader is 33 kilometers per hour. It has a transport width of 2.43 meters and a transport height of 4.16 meters. The backhoe bucket capacity is 0 cubic meters, and it has a tear-out force of 59.3 kilonewtons.

Backhoe Loaders Caterpillar 446

Technical specs - 446 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.78 t
Standard tyres
F: 14.5/75x16.1 10PR/R: 21L-24 12PR
Bucket width
2.43 m
Bucket capacity
1.1 m³
Transport length
7.53 m
Transport width
2.43 m
Transport height
4.16 m
Tear-out force
55.8 kN
Tear-out force backhoe
59.3 kN
Max. Reach horizontal
7.87 m
Dredging depth
5.22 m
Max. discharge height
2.73 m
Travel speed
33 km/h
Engine manuf.
Caterpillar
Engine type
3114
Engine power
70.8 kW
Displacement
4.4 l
No. of cylinders
4
Cylinder bore x stroke
105x127 mm

More technical details, like: bucket capacity backhoe, drive, model series, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download specalog and datasheets (PDF)

Caterpillar 446 FAQ

When was the Caterpillar 446 backhoe loader manufactured?

The Caterpillar 446 backhoe loader was manufactured from 1989 to 1994.

How much does the Caterpillar 446 backhoe loader weigh?

The Caterpillar 446 backhoe loader weighs 8.78 tons.

What are the transport dimensions of the Caterpillar 446 backhoe loader?

The Caterpillar 446 backhoe loader has a transport length of 7.53 meters, a transport width of 2.43 meters, and a transport height of 4.16 meters.

What is the travel speed of the Caterpillar 446 backhoe loader?

The Caterpillar 446 backhoe loader has a travel speed of 33 km/h.

What are the undercarriage tyre specifications of the Caterpillar 446 backhoe loader?

The Caterpillar 446 backhoe loader has standard tyres with front size 14.5/75x16.1 10PR and rear size 21L-24 12PR.

What are the dredging depth and maximum horizontal reach of the Caterpillar 446 backhoe loader?

The Caterpillar 446 backhoe loader has a dredging depth of 5.22 meters and a maximum horizontal reach of 7.87 meters.

What are the tear-out forces of the Caterpillar 446 backhoe loader?

The Caterpillar 446 has a tear-out force of 55.8 kN and a tear-out force for the backhoe of 59.3 kN.

What is the maximum discharge height of the Caterpillar 446?

The Caterpillar 446 has a maximum discharge height of 2.73 meters.

What are the specifications of the primary work tool bucket on the Caterpillar 446 backhoe loader?

The primary work tool bucket of the Caterpillar 446 has a capacity of 1.1 cubic meters and a width of 2.43 meters.

How much is a Caterpillar 446 Backhoe loader (1989u20131994) worth?

The residual value of the Caterpillar 446 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
