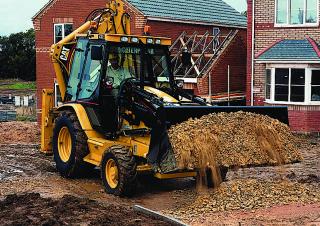

438 D 4x4 Caterpillar 438 D 4x4 Specifications & Technical Data (2000—2003)

The Caterpillar 438 D 4x4 Backhoe Loader, manufactured from 2000 to 2003, weighs 8.33 tons and has a transport length of 5.71 mete…

The Caterpillar 438 D 4x4 Backhoe Loader, manufactured from 2000 to 2003, weighs 8.33 tons and has a transport length of 5.71 meters. It has a bucket capacity of 0.175 cubic meters and a tear-out force of 37.5 kilonewtons. The dredging depth is 4.916 meters and the bucket width is 0.61 meters. The maximum discharge height is 2.613 meters and the maximum reach horizontal is 5.692 meters. The transport width is 2.36 meters and the transport height is 3.74 meters.

Backhoe Loaders Caterpillar 438 D 4x4

Technical specs - 438 D 4x4 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.33 t
Standard tyres
16.9x28
Bucket width
0.61 m
Bucket capacity
0.175 m³
Drive
A
Transport length
5.71 m
Transport width
2.36 m
Transport height
3.74 m
Tear-out force
37.5 kN
Max. Reach horizontal
5.692 m
Dredging depth
4.916 m
Max. discharge height
2.613 m
Model series
S
Engine manuf.
Caterpillar
Engine type
3054 T
Engine power
69 kW
Displacement
4 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity backhoe, tear-out force backhoe, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, backhoe type, engine manufacturer, engine model, aspiration...

More technical details, like: bucket capacity backhoe, tear-out force backhoe, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, backhoe type, engine manufacturer, engine model, aspiration, rated speed, engine output - net, engine output - gross, transmission type, number of travel speeds, service brake type, height - over cab, width, ground clearance, width - standard shovel, reach from slew pivot - non-extending dipper, reach from slew pivot - retracted dipper, reach from slew pivot - extended dipper, loading height - non-extending dipper, loading height - retracted dipper, loading height - extended dipper, dump height - general purpose, dump angle - general purpose, dump height - multi-purpose, dump angle - multi-purpose, fuel tank, shovel capacity - standard general purpose, shovel capacity - multi-purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose, shovel breakout - multi-purpose are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download specalog and datasheets (PDF)

Caterpillar 438 D 4x4 FAQ

When was the Caterpillar 438 D 4x4 manufactured?

The Caterpillar 438 D 4x4 was manufactured from 2000 to 2003.

How much does the Caterpillar 438 D 4x4 weigh?

The Caterpillar 438 D 4x4 weighs 8.33 tons.

What are the transport dimensions of the Caterpillar 438 D 4x4 backhoe loader?

The Caterpillar 438 D 4x4 has a transport length of 5.71 meters, a transport width of 2.36 meters, and a transport height of 3.74 meters.

What are the undercarriage specifications of the Caterpillar 438 D 4x4 backhoe loader?

The Caterpillar 438 D 4x4 backhoe loader has an all-wheel drive system and is equipped with standard tyres sized 16.9x28.

What are the excavation performance specifications of the Caterpillar 438 D 4x4 backhoe loader?

The Caterpillar 438 D 4x4 has a dredging depth of 4.916 meters and a maximum horizontal reach of 5.692 meters.

What is the tear-out force of the Caterpillar 438 D 4x4 backhoe loader?

The Caterpillar 438 D 4x4 backhoe loader has a tear-out force of 37.5 kN.

What is the material handling capacity of the Caterpillar 438 D 4x4 in terms of discharge height?

The Caterpillar 438 D 4x4 has a maximum discharge height of 2.61 meters.

What are the specifications of the primary work tool bucket on the Caterpillar 438 D 4x4 backhoe loader?

The primary work tool bucket of the Caterpillar 438 D 4x4 has a capacity of 0.18 cubic meters and a width of 0.61 meters.

How much is a Caterpillar 438 D 4x4 Backhoe loader (2000u20132003) worth?

The residual value of the Caterpillar 438 D 4x4 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Caterpillar 438 D 4x4 overview

Operator environment / station

Operator Controls

Low effort, logically placed controls are located within natural reach for maximum operator comfort. New, standard Pilot Hydraulic Stabiliser Controls are positioned on the side console together with the boom lock lever, improving operator comfort and visibility. The smooth, precise backhoe hydraulic controls are available in a choice of fixed and interchangeable patterns.


Universal Controls

D-Series offers an additional choice of backhoe control pattern. In addition to Caterpillar Plus Pattern or Excavator Pattern, the Universal Controls option allows an operator to choose between Caterpillar standard ‘+’ pattern or the alternative ‘X’ pattern. Changing between patterns requires a simple mechanical adjustment.


Hydraulic Stabilisers

Pilot Hydraulic Stabilisers are a new standard feature on the 428D/438D. The low effort controls are mounted on the new side console, improving operator comfort and visibility. An Auto-up option is also available which enables the operator to retract the stabilisers fully by pulling the controls into a latch position, freeing the operator to perform another function.


Operator Station

The all new D-Series cab interior contains stylish new consoles and controls designed for maximum comfort and ease of operation. White faced gauges provide added clarity and styling to each console. A Radio Ready Headliner, Pilot Hydraulic Stabiliser Controls, lockable storage console and Air Ride Seat are just some of the many standard features.
