436 B Caterpillar 436 B Specifications & Technical Data (1995—1997)

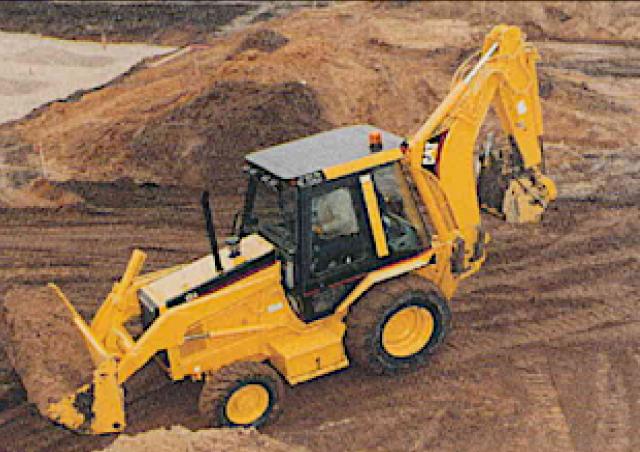

The Caterpillar 436 B Backhoe Loader, manufactured from 1995 to 1997, weighs 8.95 tons and has a transport length of 7.09 meters. …

The Caterpillar 436 B Backhoe Loader, manufactured from 1995 to 1997, weighs 8.95 tons and has a transport length of 7.09 meters. It has a bucket capacity of 1 cubic meter and a tear-out force of 43 kilonewtons. The dredging depth is 4.95 meters and the bucket width is 2.26 meters. The maximum discharge height is 2.59 meters and the maximum reach horizontal is 7.36 meters. It has a travel speed of 33.2 kilometers per hour. The transport width is 2.26 meters and the transport height is 3.81 meters. The backhoe has a bucket capacity of 0 cubic meters and a tear-out force of 64.2 kilonewtons.

Backhoe Loaders Caterpillar 436 B

Technical specs - 436 B Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.95 t
Standard tyres
F: 11L-16 12PR/R: 19.5-24 10PR
Bucket width
2.26 m
Bucket capacity
1 m³
Bucket capacity backhoe
0.07-0.32 m³
Transport length
7.09 m
Transport width
2.26 m
Transport height
3.81 m
Tear-out force
43 kN
Tear-out force backhoe
64.2 kN
Max. Reach horizontal
7.36 m
Dredging depth
4.95 m
Max. discharge height
2.59 m
Travel speed
33.2 km/h
Engine manuf.
Caterpillar
Engine type
3054
Engine power
62.7 kW
Displacement
4 l
No. of cylinders
4
Cylinder bore x stroke
100x127 mm

More technical details, like: drive, model series, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download specalog and datasheets (PDF)

Caterpillar 436 B FAQ

When was the Caterpillar 436 B manufactured?

The Caterpillar 436 B was manufactured from 1995 to 1997.

How much does the Caterpillar 436 B backhoe loader weigh?

The Caterpillar 436 B backhoe loader weighs 8.95 tons.

What are the transport dimensions of the Caterpillar 436 B backhoe loader?

The Caterpillar 436 B has a transport length of 7.09 meters, a transport width of 2.26 meters, and a transport height of 3.81 meters.

What is the travel speed of the Caterpillar 436 B backhoe loader?

The Caterpillar 436 B backhoe loader has a travel speed of 33.2 km/h.

What are the standard tyre specifications of the Caterpillar 436 B backhoe loader's undercarriage?

The Caterpillar 436 B has standard tyres: Front 11L-16 12PR and Rear 19.5-24 10PR.

What is the excavation performance of the Caterpillar 436 B backhoe loader?

The Caterpillar 436 B backhoe loader has a dredging depth of 4.95 meters and a maximum horizontal reach of 7.36 meters.

What are the tear-out forces of the Caterpillar 436 B backhoe loader?

The Caterpillar 436 B has a tear-out force of 43 kN and a backhoe tear-out force of 64.2 kN.

What is the maximum discharge height of the Caterpillar 436 B?

The Caterpillar 436 B has a maximum discharge height of 2.59 meters.

What are the specifications of the primary work tool bucket on the Caterpillar 436 B?

The primary work tool bucket of the Caterpillar 436 B has a capacity of 1 cubic meter and a width of 2.26 meters.
