428F2 Caterpillar 428F2 Specifications & Technical Data (2012—2019)

Model rating
10,00 / 10

The Caterpillar 428F2 is a backhoe loader manufactured from 2012 to 2019. It has a weight of 8.42 tons and a transport length of 5…

The Caterpillar 428F2 is a backhoe loader manufactured from 2012 to 2019. It has a weight of 8.42 tons and a transport length of 5.7 meters. The bucket capacity is 1.03 cubic meters, with a tear-out force of 54.8 kN. It can dredge up to a depth of 4.28 meters and has a bucket width of 2.41 meters. The maximum discharge height is 2.8 meters, and it can reach a maximum horizontal distance of 5.65 meters. The travel speed is 40 km/h, and the transport width is 2.35 meters. The transport height is 3.78 meters, and the tear-out force for the backhoe is 63.4 kN.

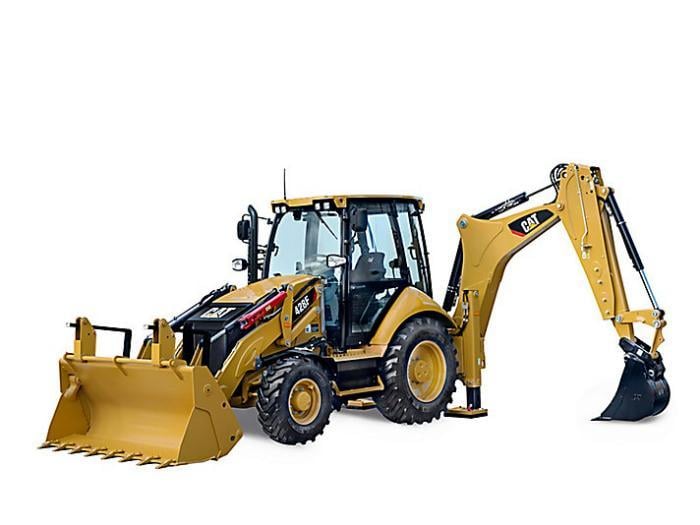

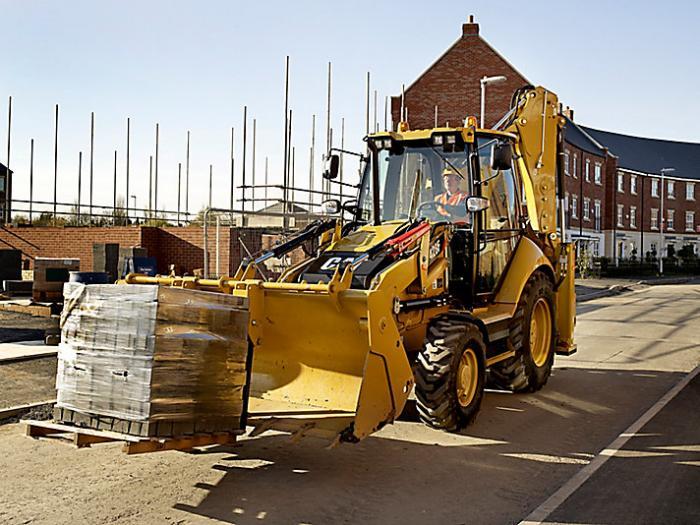

Backhoe Loaders Caterpillar 428F2
Backhoe Loaders Caterpillar 428F2
Backhoe Loaders Caterpillar 428F2
Backhoe Loaders Caterpillar 428F2

Technical specs - 428F2 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.42 t
Bucket width
2.41 m
Bucket capacity
1.03 m³
Drive
A
Transport length
5.7 m
Transport width
2.35 m
Transport height
3.78 m
Tear-out force
54.8 kN
Tear-out force backhoe
63.4 kN
Max. Reach horizontal
5.65 m
Dredging depth
4.28 m
Max. discharge height
2.8 m
Travel speed
40 km/h
Engine manuf.
Caterpillar
Engine type
C4.4
Engine power
70 kW
Displacement
4.4 l
Revolutions at max torque
1400 rpm
Max. torque
439 Nm
Cylinder bore x stroke
105x125 mm
Emission level
Stufe IV

More technical details, like: standard tyres, bucket capacity backhoe, model series, dimension lxwxh, no. of cylinders, backhoe type, telematics available, engine manufacturer, engine model, emission rating, aspiration, diesel particulate filter...

More technical details, like: standard tyres, bucket capacity backhoe, model series, dimension lxwxh, no. of cylinders, backhoe type, telematics available, engine manufacturer, engine model, emission rating, aspiration, diesel particulate filter, rated speed, engine output - net, engine output - gross, torque, transmission type, number of travel speeds, drive - 2wd / 4wd, service brake type, length - roading, height - over cab, maximum height, width, ground clearance, shovel quick-hitch, backhoe quick-hitch, width - standard shovel, stabiliser type, maximum dig depth - longest dipper, dig depth - sae, dig depth - sae retracted dipper, dig depth - sae extended dipper, reach from slew pivot - non-extending dipper, reach from slew pivot - retracted dipper, reach from slew pivot - extended dipper, loading height - non-extending dipper, loading height - retracted dipper, loading height - extended dipper, dump height - general purpose, dump angle - general purpose, dump height - multi-purpose, dump angle - multi-purpose, turning radius kerb - 4wd not braked, fuel tank, shovel capacity - standard general purpose, shovel capacity - multi-purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose, shovel breakout - multi-purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download specalog and datasheets (PDF)

Caterpillar 428F2 FAQ

When was the Caterpillar 428F2 backhoe loader manufactured?

The Caterpillar 428F2 was manufactured from 2012 to 2019.

How much does the Caterpillar 428F2 backhoe loader weigh?

The Caterpillar 428F2 backhoe loader weighs 8.42 tons.

What are the transport dimensions of the Caterpillar 428F2 backhoe loader?

The Caterpillar 428F2 has a transport length of 5.7 meters, a transport width of 2.35 meters, and a transport height of 3.78 meters.

What is the travel speed of the Caterpillar 428F2 backhoe loader?

The Caterpillar 428F2 backhoe loader has a travel speed of 40 km/h.

What type of drive system does the Caterpillar 428F2 backhoe loader have?

The Caterpillar 428F2 backhoe loader has an all-wheel drive system.

What are the excavation performance specifications of the Caterpillar 428F2 backhoe loader?

The Caterpillar 428F2 backhoe loader has a dredging depth of 4.28 meters and a maximum horizontal reach of 5.65 meters.

What are the tear-out forces of the Caterpillar 428F2 backhoe loader?

The Caterpillar 428F2 has a tear-out force of 54.8 kN and a backhoe tear-out force of 63.4 kN.

What is the maximum discharge height of the Caterpillar 428F2?

The Caterpillar 428F2 has a maximum discharge height of 2.8 meters.

What are the specifications of the primary work tool on the Caterpillar 428F2 backhoe loader?

The primary work tool of the Caterpillar 428F2 backhoe loader has a bucket capacity of 1.03 cubic meters and a bucket width of 2.41 meters.

How much is a Caterpillar 428F2 Backhoe loader (2012u20132019) worth?

The residual value of the Caterpillar 428F2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
