428E 4x4 Caterpillar 428E 4x4 Specifications & Technical Data (2006—2011)

Model rating: 8,40 / 10

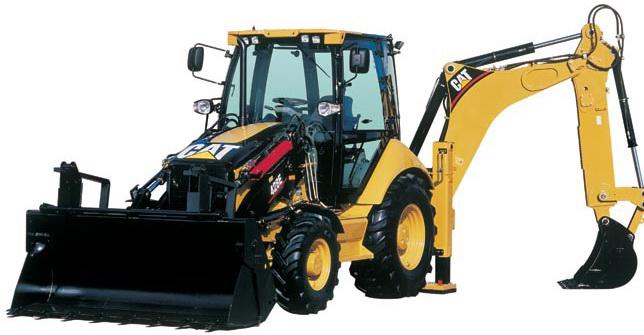

The Caterpillar 428E 4x4 Backhoe Loader, manufactured from 2006 to 2011, weighs 9 tons and has a transport length of 2.4 meters. I…

The Caterpillar 428E 4x4 Backhoe Loader, manufactured from 2006 to 2011, weighs 9 tons and has a transport length of 2.4 meters. It has a bucket capacity of 1.03 cubic meters and a tear-out force of 32 kilonewtons. The dredging depth is 4.898 meters and the bucket width is 2.406 meters. The maximum discharge height is 2.634 meters and the maximum reach horizontal is 5.628 meters. The transport width is 3.8 meters and the transport height is 0.9 meters.

428E 4x4

Years of manufacture: 2006—2011

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Reviews
Transport
News

Technical specs - 428E 4x4 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 9 t

Bucket width: 2.406 m

Bucket capacity: 1.03 m³

Drive: A

Transport length: 2.4 m

Transport width: 3.8 m

Transport height: 0.9 m

Tear-out force: 32 kN

Max. Reach horizontal: 5.628 m

Dredging depth: 4.898 m

Max. discharge height: 2.634 m

Engine manuf.: Caterpillar

Engine type: 3054 CT

Engine power: 67 kW

Displacement: 4.4 l

Revolutions at max torque: 2200 rpm

More technical details, like: standard tyres, bucket capacity backhoe, tear-out force backhoe, travel speed, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, backhoe type, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, engine output - gross, transmission type, number of travel speeds, drive - 2wd / 4wd, service brake type, length - roading, height - over cab, maximum height, width, ground clearance, width - standard shovel, stabiliser type, maximum dig depth - longest dipper, dig depth - sae, dig depth - sae retracted dipper, dig depth - sae extended dipper, reach from slew pivot - non-extending dipper, reach from slew pivot - retracted dipper, reach from slew pivot - extended dipper, loading height - non-extending dipper, loading height - retracted dipper, loading height - extended dipper, dump height - general purpose, dump angle - general purpose, dump height - multi-purpose, dump angle - multi-purpose, fuel tank, shovel capacity - standard general purpose, shovel capacity - multi-purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose, shovel breakout - multi-purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download specalog and datasheets (PDF)

Caterpillar 428E 4x4 FAQ

When was the Caterpillar 428E 4x4 backhoe loader manufactured?

The Caterpillar 428E 4x4 backhoe loader was manufactured from 2006 to 2011.

How much does the Caterpillar 428E 4x4 weigh?

The Caterpillar 428E 4x4 weighs 9 tons.

What are the transport dimensions of the Caterpillar 428E 4x4 backhoe loader?

The Caterpillar 428E 4x4 has a transport length of 2.4 meters, a transport width of 3.8 meters, and a transport height of 0.9 meters.

What type of drive does the Caterpillar 428E 4x4 backhoe loader have in its undercarriage?

The Caterpillar 428E 4x4 backhoe loader has an all-wheel drive system in its undercarriage.

What are the excavation performance specifications of the Caterpillar 428E 4x4 backhoe loader?

The Caterpillar 428E 4x4 has a dredging depth of 4.898 meters and a maximum horizontal reach of 5.628 meters.

What is the tear-out force of the Caterpillar 428E 4x4 backhoe loader?

The Caterpillar 428E 4x4 backhoe loader has a tear-out force of 32 kN.

What is the maximum discharge height of the Caterpillar 428E 4x4?

The Caterpillar 428E 4x4 has a maximum discharge height of 2.63 meters.

What are the specifications of the primary work tool on the Caterpillar 428E 4x4 backhoe loader?

The primary work tool of the Caterpillar 428E 4x4 has a bucket capacity of 1.03 cubic meters and a bucket width of 2.41 meters.

How much is a Caterpillar 428E 4x4 Backhoe loader (2006u20132011) worth?

The residual value of the Caterpillar 428E 4x4 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
