420 D Caterpillar 420 D Specifications & Technical Data (2001—2008)

The Caterpillar 420 D is a backhoe loader manufactured by Caterpillar from 2001 to 2008. It has a weight of 9.88 tons and a transp…

The Caterpillar 420 D is a backhoe loader manufactured by Caterpillar from 2001 to 2008. It has a weight of 9.88 tons and a transport length of 7.02 meters. The bucket capacity is 0.96 cubic meters, with a tear-out force of 45.1 kilonewtons. It can dredge up to a depth of 4.39 meters and has a bucket width of 2.26 meters. The maximum discharge height is 2.54 meters, and it has a maximum reach horizontal of 6.74 meters. The travel speed of this backhoe loader is 32.8 kilometers per hour. It has a transport width of 2.35 meters and a transport height of 3.59 meters. The backhoe bucket capacity is 0 cubic meters, and it has a tear-out force of 65.4 kilonewtons.

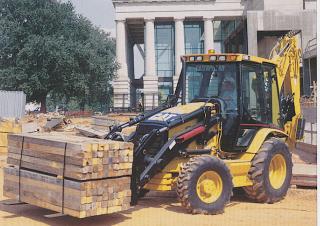

Backhoe Loaders Caterpillar 420 D

Technical specs - 420 D Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.88 t
Standard tyres
F: 11L x 16 12PR/R: 19.5x24 10PR
Bucket width
2.26 m
Bucket capacity
0.96 m³
Bucket capacity backhoe
0.08-0.29 m³
Transport length
7.02 m
Transport width
2.35 m
Transport height
3.59 m
Tear-out force
45.1 kN
Tear-out force backhoe
65.4 kN
Max. Reach horizontal
6.74 m
Dredging depth
4.39 m
Max. discharge height
2.54 m
Travel speed
32.8 km/h
Engine manuf.
Caterpillar
Engine type
3054T
Engine power
66 kW
Displacement
4 l
Max. torque
345 Nm
Cylinder bore x stroke
100x127 mm

More technical details, like: drive, model series, dimension lxwxh, revolutions at max torque, no. of cylinders, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download specalog and datasheets (PDF)

Caterpillar 420 D FAQ

When was the Caterpillar 420 D backhoe loader manufactured?

The Caterpillar 420 D backhoe loader was manufactured from 2001 to 2008.

How much does the Caterpillar 420 D backhoe loader weigh?

The Caterpillar 420 D backhoe loader weighs 9.88 tons.

What are the transport dimensions of the Caterpillar 420 D backhoe loader?

The Caterpillar 420 D has a transport length of 7.02 meters, a transport width of 2.35 meters, and a transport height of 3.59 meters.

What is the travel speed of the Caterpillar 420 D backhoe loader?

The Caterpillar 420 D backhoe loader has a travel speed of 32.8 km/h.

What are the undercarriage specifications of the Caterpillar 420 D backhoe loader?

The Caterpillar 420 D backhoe loader has standard tyres with front tyres sized 11L x 16 12PR and rear tyres sized 19.5x24 10PR.

What are the excavation performance specifications of the Caterpillar 420 D backhoe loader?

The Caterpillar 420 D backhoe loader has a dredging depth of 4.39 meters and a maximum horizontal reach of 6.74 meters.

What are the tear-out forces of the Caterpillar 420 D backhoe loader?

The Caterpillar 420 D has a tear-out force of 45.1 kN and a backhoe tear-out force of 65.4 kN.

What is the material handling capacity of the Caterpillar 420 D in terms of discharge height?

The Caterpillar 420 D has a maximum discharge height of 2.54 meters.

What are the bucket specifications of the Caterpillar 420 D backhoe loader?

The Caterpillar 420 D backhoe loader has a bucket capacity of 0.96 cubic meters and a bucket width of 2.26 meters.
