416 D Caterpillar 416 D Specifications & Technical Data (2001—2026)

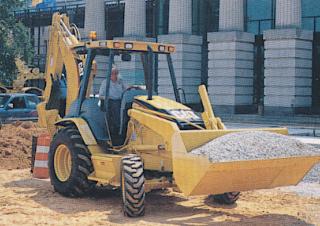

The Caterpillar 416 D is a backhoe loader manufactured by Caterpillar since 2001. It has a weight of 9.8 tons and a transport leng…

The Caterpillar 416 D is a backhoe loader manufactured by Caterpillar since 2001. It has a weight of 9.8 tons and a transport length of 6.95 meters. The bucket capacity is 0.76 cubic meters, with a tear-out force of 40 kilonewtons. It can dredge up to a depth of 4.39 meters and has a bucket width of 2.26 meters. The maximum discharge height is 2.62 meters, and it has a maximum reach horizontal of 6.74 meters. The travel speed of this backhoe loader is 32.8 kilometers per hour. It has a transport width of 2.35 meters and a transport height of 3.59 meters. The backhoe bucket capacity is 0 cubic meters, and it has a tear-out force of 52 kilonewtons.

Backhoe Loaders Caterpillar 416 D

Technical specs - 416 D Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.8 t
Standard tyres
F: 11Lx16 10PR/R: 19.5 x 24 10PR
Bucket width
2.26 m
Bucket capacity
0.76 m³
Bucket capacity backhoe
0.08-0.29 m³
Transport length
6.95 m
Transport width
2.35 m
Transport height
3.59 m
Tear-out force
40 kN
Tear-out force backhoe
52 kN
Max. Reach horizontal
6.74 m
Dredging depth
4.39 m
Max. discharge height
2.62 m
Travel speed
32.8 km/h
Engine manuf.
Perkins
Engine type
3054B
Engine power
62 kW
Displacement
4 l
No. of cylinders
4
Cylinder bore x stroke
100x127 mm

More technical details, like: drive, model series, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download specalog and datasheets (PDF)

Caterpillar 416 D FAQ

When was the Caterpillar 416 D manufactured?

The Caterpillar 416 D was first produced in 2001.

How much does the Caterpillar 416 D backhoe loader weigh?

The Caterpillar 416 D backhoe loader weighs 9.8 tons.

What are the transport dimensions of the Caterpillar 416 D backhoe loader?

The Caterpillar 416 D has a transport length of 6.95 meters, a transport width of 2.35 meters, and a transport height of 3.59 meters.

What is the travel speed of the Caterpillar 416 D backhoe loader?

The Caterpillar 416 D backhoe loader has a travel speed of 32.8 km/h.

What are the undercarriage specifications of the Caterpillar 416 D backhoe loader?

The Caterpillar 416 D backhoe loader has standard tyres with front sizes of 11Lx16 10PR and rear sizes of 19.5 x 24 10PR.

What is the excavation performance of the Caterpillar 416 D backhoe loader?

The Caterpillar 416 D backhoe loader has a dredging depth of 4.39 meters and a maximum horizontal reach of 6.74 meters.

What are the tear-out forces of the Caterpillar 416 D backhoe loader?

The Caterpillar 416 D has a tear-out force of 40 kN and a backhoe tear-out force of 52 kN.

What is the maximum discharge height of the Caterpillar 416 D?

The Caterpillar 416 D has a maximum discharge height of 2.62 meters.

What are the specifications of the primary work tool on the Caterpillar 416 D backhoe loader?

The primary work tool of the Caterpillar 416 D backhoe loader has a bucket capacity of 0.76 cubic meters and a bucket width of 2.26 meters.
