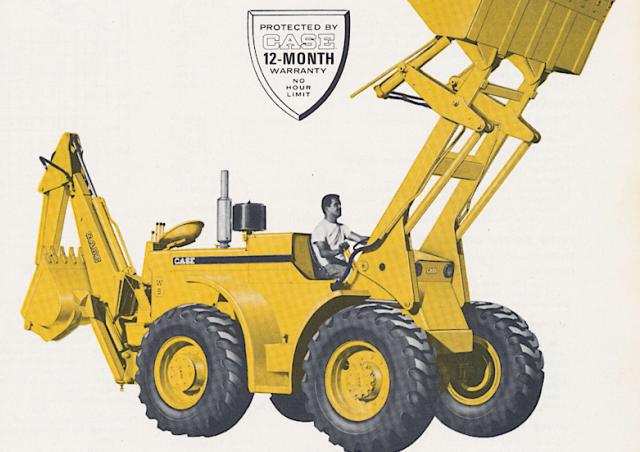

W-9 Case W-9 Specifications & Technical Data (1965—2010)

The Case W-9 is a backhoe loader manufactured by Case since 1965. It has a weight of 8.5 tons and a transport length of 7.95 meter…

The Case W-9 is a backhoe loader manufactured by Case since 1965. It has a weight of 8.5 tons and a transport length of 7.95 meters. The bucket capacity is 2.3 cubic meters, with a dredging depth of 4.3 meters and a bucket width of 2.79 meters. The maximum discharge height is 3.45 meters, and it has a maximum reach horizontal of 5.12 meters. The travel speed of this backhoe loader is 32.6 kilometers per hour. It has a transport width of 2.4 meters and a transport height of 3.21 meters. The tear-out force of the backhoe is 39 kilonewtons.

Backhoe Loaders Case W-9

Technical specs - W-9 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.5 t
Standard tyres
14.00x24. 8-ply
Bucket width
2.79 m
Bucket capacity
2.3 m³
Transport length
7.95 m
Transport width
2.4 m
Transport height
3.21 m
Tear-out force backhoe
39 kN
Max. Reach horizontal
5.12 m
Dredging depth
4.3 m
Max. discharge height
3.45 m
Travel speed
32.6 km/h
Engine manuf.
Case
Engine type
401D
Engine power
84 kW
Displacement
6.6 l
Revolutions at max torque
1300 rpm
Max. torque
415 Nm
No. of cylinders
6
Cylinder bore x stroke
102x127 mm

More technical details, like: bucket capacity backhoe, drive, tear-out force, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

Case W-9 FAQ

When was the Case W-9 manufactured?

The Case W-9 was first produced in 1965.

How much does the Case W-9 backhoe loader weigh?

The Case W-9 backhoe loader weighs 8.5 tons.

What are the transport dimensions of the Case W-9 backhoe loader?

The Case W-9 has a transport length of 7.95 meters, a transport width of 2.4 meters, and a transport height of 3.21 meters.

What is the travel speed of the Case W-9 backhoe loader?

The travel speed of the Case W-9 backhoe loader is 32.6 km/h.

What are the undercarriage specifications of the Case W-9 backhoe loader?

The Case W-9 backhoe loader is equipped with standard tyres sized 14.00x24 with an 8-ply rating.

What are the excavation performance specifications of the Case W-9 backhoe loader?

The Case W-9 backhoe loader has a dredging depth of 4.3 meters and a maximum horizontal reach of 5.12 meters.

What is the tear-out force of the Case W-9 backhoe?

The Case W-9 backhoe has a tear-out force of 39 kN.

What is the maximum discharge height of the Case W-9?

The Case W-9 has a maximum discharge height of 3.45 meters.

What are the specifications of the primary work tool on the Case W-9 backhoe loader?

The primary work tool of the Case W-9 backhoe loader has a bucket capacity of 2.3 cubic meters and a bucket width of 2.79 meters.
