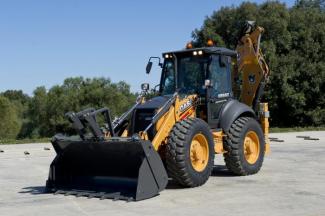

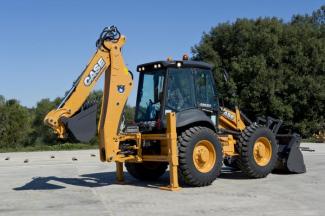

Case 695 ST Backhoe Loader Specs & Dimensions (2009 - 2014)

Technical specs - 695 ST Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 8.84 t

Standard tyres: 16.9x24

Bucket width: 2.4 m

Bucket capacity: 1.2 m³

Drive: A

Transport length: 5.75 m

Transport width: 2.4 m

Transport height: 2.9 m

Dredging depth: 4.595 m

Model series: ST

Engine manuf.: CNH

Engine type: 445TA-EGH

Engine power: 82 kW

Displacement: 4.5 l

Revolutions at max torque: 1400 rpm

Emission level: TIER 4i

More technical details, like: bucket capacity backhoe, tear-out force, tear-out force backhoe, max. reach horizontal, max. discharge height, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, backhoe type, telematics available...

More technical details, like: bucket capacity backhoe, tear-out force, tear-out force backhoe, max. reach horizontal, max. discharge height, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, backhoe type, telematics available, platform, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, torque, transmission type, number of travel speeds, drive - 2wd / 4wd, service brake type, length - roading, height - over cab, maximum height, width, width - standard shovel, stabiliser type, maximum dig depth - longest dipper, reach from slew pivot - non-extending dipper, reach from slew pivot - retracted dipper, reach from slew pivot - extended dipper, loading height - non-extending dipper, loading height - retracted dipper, loading height - extended dipper, dump height - general purpose, dump angle - general purpose, dump height - multi-purpose, dump angle - multi-purpose, fuel tank, shovel capacity - standard general purpose, shovel capacity - multi-purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose, shovel breakout - multi-purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download datasheets (PDF)

Case 695 ST FAQ

When was the Case 695 ST manufactured?

The Case 695 ST was manufactured from 2009 to 2014.

How much does the Case 695 ST backhoe loader weigh?

The Case 695 ST backhoe loader weighs 8.84 tons.

What are the transport dimensions of the Case 695 ST backhoe loader?

The Case 695 ST has a transport length of 5.75 meters, a transport width of 2.4 meters, and a transport height of 2.9 meters.

What are the undercarriage specifications of the Case 695 ST backhoe loader?

The Case 695 ST backhoe loader has an all-wheel drive system and is equipped with standard tyres sized 16.9x24.

What is the dredging depth of the Case 695 ST backhoe loader?

The Case 695 ST backhoe loader has a dredging depth of 4.595 meters.

What are the specifications of the primary work tool bucket on the Case 695 ST backhoe loader?

The primary work tool bucket of the Case 695 ST has a capacity of 1.2 cubic meters and a width of 2.4 meters.

How much is a Case 695 ST Backhoe loader (2009u20132014) worth?

The residual value of the Case 695 ST depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
