695 SR 2 Case 695 SR 2 Specifications & Technical Data (2005—2008)

Model rating: 8,50 / 10

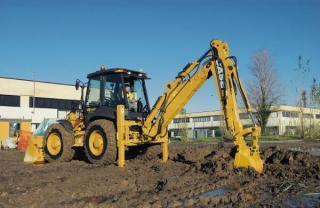

The Case 695 SR 2 is a backhoe loader manufactured by Case from 2005 to 2008. It has a weight of 8.8 tons and a transport length o…

The Case 695 SR 2 is a backhoe loader manufactured by Case from 2005 to 2008. It has a weight of 8.8 tons and a transport length of 5.75 meters. The bucket capacity is 1.2 cubic meters, with a tear-out force of 37.5 kilonewtons. It can dredge up to a depth of 5.81 meters and has a bucket width of 2.4 meters. The maximum discharge height is 2.74 meters, and it has a maximum reach horizontal of 7.2 meters. It has a transport width of 2.4 meters and a transport height of 3.94 meters. Additionally, it is equipped with outrigger stabilizers.

695 SR 2

Years of manufacture: 2005—2008

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 695 SR 2 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 8.8 t

Standard tyres: 16.9x24

Bucket width: 2.4 m

Bucket capacity: 1.2 m³

Drive: A

Transport length: 5.75 m

Transport width: 2.4 m

Transport height: 3.94 m

Tear-out force: 37.5 kN

Max. Reach horizontal: 7.2 m

Dredging depth: 5.81 m

Max. discharge height: 2.74 m

Model series: SR

Engine manuf.: CNH

Engine type: 445TA-M2

Engine power: 111 kW

Displacement: 4.485 l

Revolutions at max torque: 1400 rpm

More technical details, like: bucket capacity backhoe, tear-out force backhoe, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, backhoe type, telematics available, platform, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, torque, transmission type, number of travel speeds, drive - 2wd / 4wd, service brake type, length - roading, height - over cab, maximum height, width, width - standard shovel, stabiliser type, maximum dig depth - longest dipper, reach from slew pivot - non-extending dipper, reach from slew pivot - retracted dipper, reach from slew pivot - extended dipper, loading height - non-extending dipper, loading height - retracted dipper, loading height - extended dipper, dump height - general purpose, dump angle - general purpose, dump height - multi-purpose, dump angle - multi-purpose, fuel tank, shovel capacity - standard general purpose, shovel capacity - multi-purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose, shovel breakout - multi-purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download datasheets (PDF)

695 SR 2 Case Specification for Europe (DE)

Case 695 SR 2 FAQ

When was the Case 695 SR 2 manufactured?

The Case 695 SR 2 was manufactured from 2005 to 2008.

How much does the Case 695 SR 2 backhoe loader weigh?

The Case 695 SR 2 backhoe loader weighs 8.8 tons.

What are the transport dimensions of the Case 695 SR 2 backhoe loader?

The Case 695 SR 2 has a transport length of 5.75 meters, a transport width of 2.4 meters, and a transport height of 3.94 meters.

What are the undercarriage specifications of the Case 695 SR 2 backhoe loader?

The Case 695 SR 2 backhoe loader features an all-wheel drive system and comes equipped with standard tyres sized 16.9x24.

What are the excavation performance specifications of the Case 695 SR 2 backhoe loader?

The Case 695 SR 2 backhoe loader has a dredging depth of 5.81 meters and a maximum horizontal reach of 7.2 meters.

What is the tear-out force of the Case 695 SR 2 backhoe loader?

The Case 695 SR 2 has a tear-out force of 37.5 kN.

What is the maximum discharge height of the Case 695 SR 2?

The Case 695 SR 2 has a maximum discharge height of 2.74 meters.

What are the bucket specifications of the Case 695 SR 2 backhoe loader?

The Case 695 SR 2 has a bucket capacity of 1.2 cubic meters and a bucket width of 2.4 meters.

How much is a Case 695 SR 2 Backhoe loader (2005u20132008) worth?

The residual value of the Case 695 SR 2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
