695 Case 695 Specifications & Technical Data (2002—2004)

Model rating: 7,00 / 10

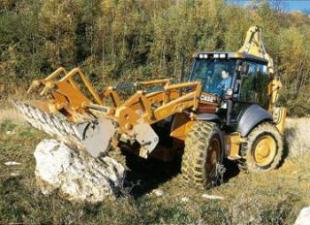

The Case 695 Backhoe Loader, manufactured from 2002 to 2004, is a construction machine with a weight of 8.7 tons. It has a transpo…

The Case 695 Backhoe Loader, manufactured from 2002 to 2004, is a construction machine with a weight of 8.7 tons. It has a transport length of 5.75 meters and a transport width and height of 2.4 meters and 2.9 meters respectively. The bucket capacity is 1.2 cubic meters, with a tear-out force of 34.5 kN. It can dredge up to a depth of 4.98 meters and has a bucket width of 2.4 meters. The maximum discharge height is 2.74 meters, and it can reach a maximum horizontal reach of 2.88 meters.

695

Years of manufacture: 2002—2004

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 695 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 8.7 t

Standard tyres: 16.9 R24

Bucket width: 2.4 m

Bucket capacity: 1.2 m³

Drive: A

Transport length: 5.75 m

Transport width: 2.4 m

Transport height: 2.9 m

Tear-out force: 34.5 kN

Max. Reach horizontal: 2.88 m

Dredging depth: 4.98 m

Max. discharge height: 2.74 m

Engine manuf.: CNH

Engine type: 450T-PD

Engine power: 79 kW

Displacement: 4.5 l

Revolutions at max torque: 2200 rpm

More technical details, like: bucket capacity backhoe, tear-out force backhoe, travel speed, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, backhoe type, telematics available, platform, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, torque, transmission type, number of travel speeds, drive - 2wd / 4wd, service brake type, length - roading, height - over cab, maximum height, width, width - standard shovel, stabiliser type, maximum dig depth - longest dipper, reach from slew pivot - non-extending dipper, reach from slew pivot - retracted dipper, reach from slew pivot - extended dipper, loading height - non-extending dipper, loading height - retracted dipper, loading height - extended dipper, dump height - general purpose, dump angle - general purpose, dump height - multi-purpose, dump angle - multi-purpose, fuel tank, shovel capacity - standard general purpose, shovel capacity - multi-purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose, shovel breakout - multi-purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download datasheets (PDF)

695 Case Specification for Europe (DE)

Case 695 FAQ

When was the Case 695 backhoe loader manufactured?

The Case 695 backhoe loader was manufactured from 2002 to 2004.

How much does the Case 695 backhoe loader weigh?

The Case 695 backhoe loader weighs 8.7 tons.

What are the transport dimensions of the Case 695 backhoe loader?

The Case 695 backhoe loader has a transport length of 5.75 meters, a transport width of 2.4 meters, and a transport height of 2.9 meters.

What are the undercarriage specifications of the Case 695 backhoe loader?

The Case 695 backhoe loader has an all-wheel drive system and is equipped with standard tyres sized 16.9 R24.

What is the excavation performance of the Case 695 backhoe loader?

The Case 695 backhoe loader has a dredging depth of 4.98 meters and a maximum horizontal reach of 2.88 meters.

What is the tear-out force of the Case 695 backhoe loader?

The Case 695 backhoe loader has a tear-out force of 34.5 kN.

What is the material handling capacity of the Case 695 in terms of discharge height?

The Case 695 has a maximum discharge height of 2.74 meters.

What are the bucket specifications of the Case 695 backhoe loader?

The Case 695 backhoe loader has a bucket capacity of 1.2 cubic meters and a bucket width of 2.4 meters.
