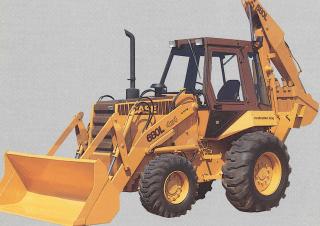

680 L Case 680 L Specifications & Technical Data (1988—2015)
Technical specs - 680 L Case
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 8.799 t
- Standard tyres
- 16.9x28
- Bucket width
- 2.44 m
- Bucket capacity
- 1.15 m³
- Transport length
- 7.01 m
- Transport width
- 2.44 m
- Transport height
- 3.81 m
- Dredging depth
- 6.27 m
- Model series
- L
- Engine manuf.
- Case
- Engine type
- 6590
- Engine power
- 67 kW
- Displacement
- 5.8 l
- Max. torque
- 352 Nm
- No. of cylinders
- 4
- Cylinder bore x stroke
- 102x120 mm
More technical details, like: bucket capacity backhoe, drive, tear-out force, tear-out force backhoe, max. reach horizontal, max. discharge height, travel speed, dimension lxwxh, revolutions at max torque, emission level are available in the full technical specs.
Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket
Special equipment
- Outrigger stabilisers
-
No
- Clamshell
-
No
- Forklift utility
-
No
- Grabber
-
No
- Diesel particulate filter
-
No
- Aircondition
-
No
