590SV  Case 590SV  Specifications & Technical Data (2021—2025)

The Case 590SV is a backhoe loader manufactured by Case since 2021. It has a weight of 9.4 tons and a transport length of 5.56 met…

The Case 590SV is a backhoe loader manufactured by Case since 2021. It has a weight of 9.4 tons and a transport length of 5.56 meters. The bucket capacity is 1 cubic meter, with a tear-out force of 40.62 kilonewtons. It can dredge up to a depth of 4.67 meters and has a bucket width of 2.25 meters. The maximum discharge height is 2.685 meters, and it has a maximum reach horizontal of 5.497 meters. The travel speed of this backhoe loader is 40 kilometers per hour. It has a transport width of 2.43 meters and a transport height of 3.682 meters. Additionally, it is equipped with air conditioning, a clamshell, and a forklift utility. The backhoe bucket capacity is 0.3 cubic meters, and it has a tear-out force of 53.26 kilonewtons.

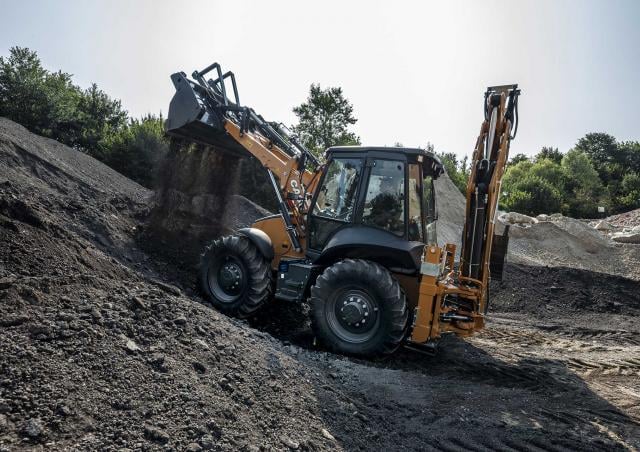

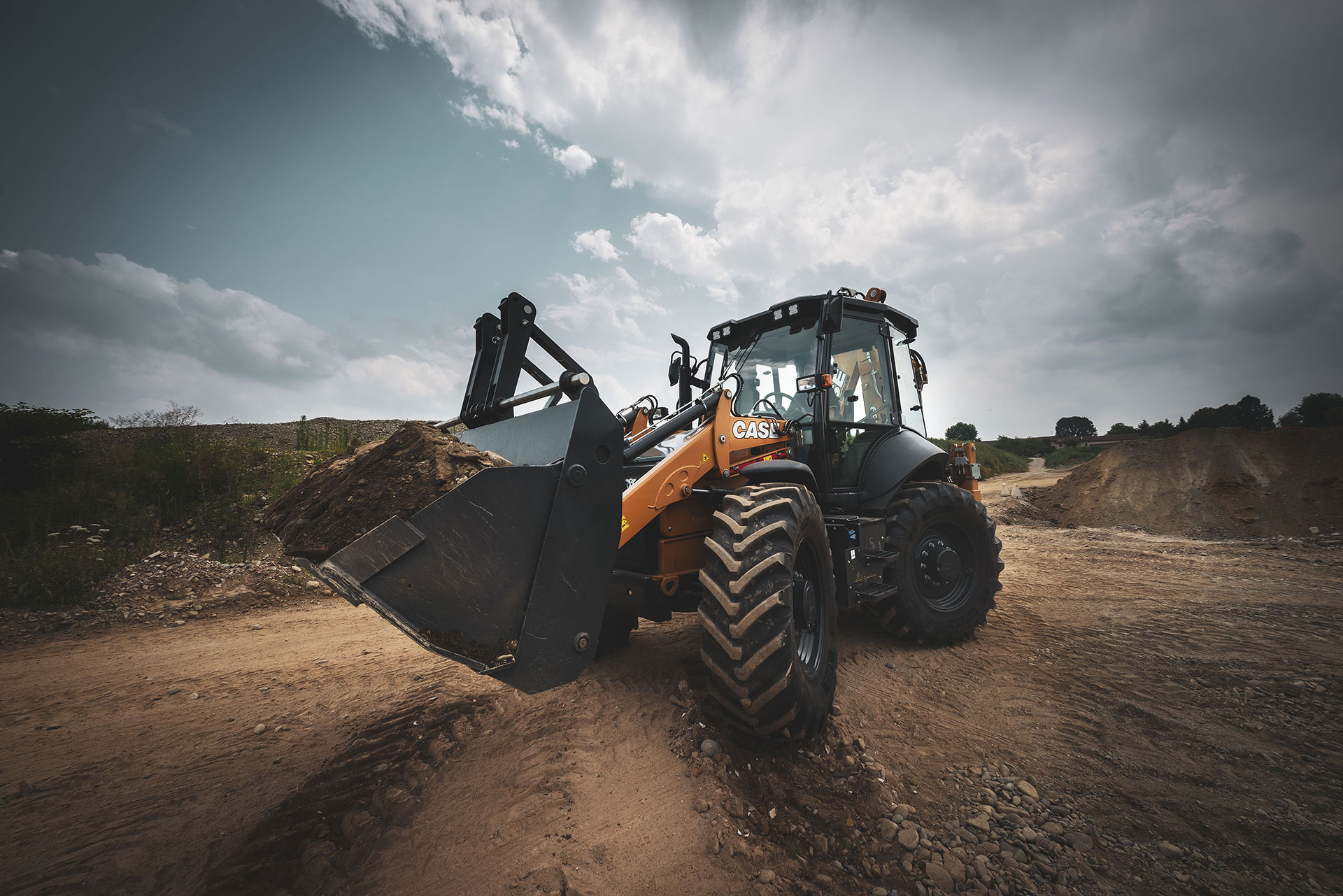

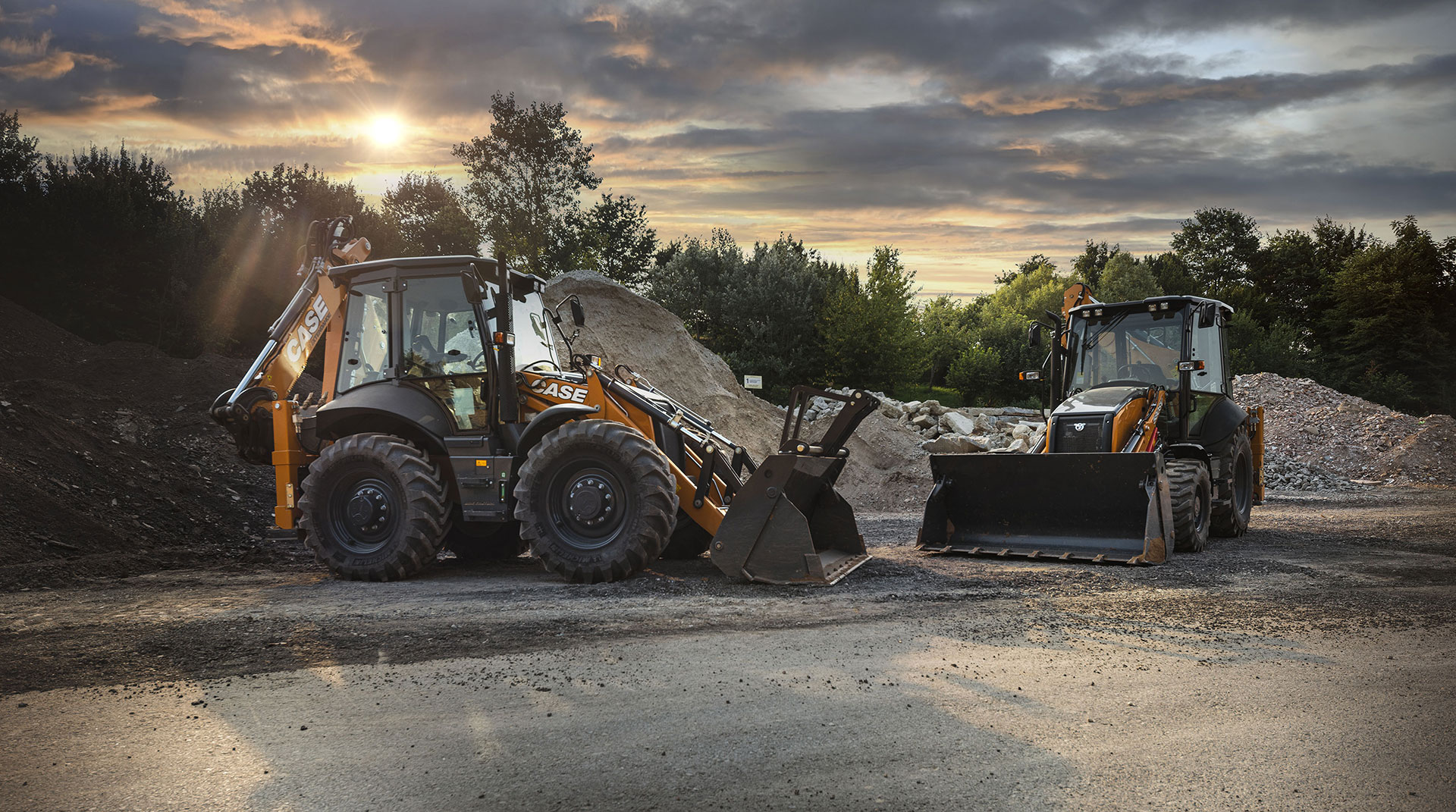

Backhoe Loaders Case 590SV
Backhoe Loaders Case 590SV
Backhoe Loaders Case 590SV
Backhoe Loaders Case 590SV
Backhoe Loaders Case 590SV
Backhoe Loaders Case 590SV
Backhoe Loaders Case 590SV
Backhoe Loaders Case 590SV

Technical specs - 590SV  Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.4 t
Standard tyres
16.9-28
Bucket width
2.25 m
Bucket capacity
1 m³
Bucket capacity backhoe
0.3 m³
Drive
A
Transport length
5.56 m
Transport width
2.43 m
Transport height
3.682 m
Tear-out force
40.62 kN
Tear-out force backhoe
53.26 kN
Max. Reach horizontal
5.497 m
Dredging depth
4.67 m
Max. discharge height
2.685 m
Travel speed
40 km/h
Model series
SV
Engine manuf.
FPT
Engine type
F5C-F5MGL413A
Engine power
82 kW
Displacement
3.4 l
Revolutions at max torque
1400 rpm
Max. torque
460 Nm
No. of cylinders
4
Cylinder bore x stroke
102x110 mm
Emission level
V

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
Yes
Forklift utility
Yes
Grabber
Yes
Diesel particulate filter
Yes
Aircondition
Yes

Download datasheets (PDF)

Case 590SV  FAQ

When was the Case 590SV manufactured?

The Case 590SV was first produced in 2021.

How much does the Case 590SV backhoe loader weigh?

The Case 590SV backhoe loader weighs 9.4 tons.

What are the transport dimensions of the Case 590SV backhoe loader?

The Case 590SV backhoe loader has a transport length of 5.56 meters, a transport width of 2.43 meters, and a transport height of 3.68 meters.

What is the travel speed of the Case 590SV backhoe loader?

The Case 590SV backhoe loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the Case 590SV backhoe loader?

The Case 590SV backhoe loader has an all-wheel drive system and comes equipped with standard tyres sized 16.9-28.

What are the excavation performance specifications of the Case 590SV backhoe loader?

The Case 590SV backhoe loader has a dredging depth of 4.67 meters and a maximum horizontal reach of 5.497 meters.

What are the power ratings of the Case 590SV backhoe loader?

The Case 590SV backhoe loader has a tear-out force of 40.62 kN and a backhoe tear-out force of 53.26 kN.

What is the maximum discharge height of the Case 590SV backhoe loader?

The Case 590SV backhoe loader has a maximum discharge height of 2.69 meters.

What are the primary bucket specifications of the Case 590SV backhoe loader?

The Case 590SV has a front bucket capacity of 1 cubic meter with a width of 2.25 meters, and a backhoe bucket capacity of 0.3 cubic meters.
