590ST Case 590ST Specifications & Technical Data (2017—2021)

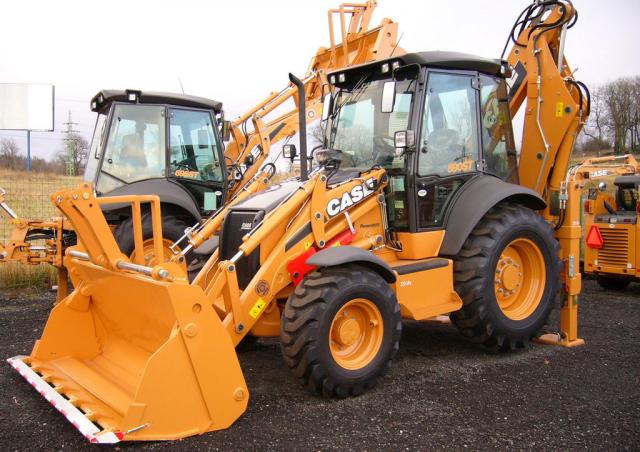

The Case 590ST is a backhoe loader manufactured by Case from 2017 to 2021. It has a weight of 9.4 tons and a transport length of 5…

The Case 590ST is a backhoe loader manufactured by Case from 2017 to 2021. It has a weight of 9.4 tons and a transport length of 5.56 meters. The bucket capacity is 1 cubic meter, with a tear-out force of 40.62 kilonewtons. It can dredge up to a depth of 4.67 meters and has a bucket width of 2.25 meters. The maximum discharge height is 2.685 meters, and it has a maximum reach horizontal of 5.497 meters. The travel speed of this backhoe loader is 40 kilometers per hour. It has a transport width of 2.43 meters and a transport height of 3.682 meters. Additionally, it is equipped with air conditioning, a clamshell, and a forklift utility. The backhoe bucket capacity is 0.3 cubic meters, and it has a tear-out force of 53.26 kilonewtons.

590ST

Years of manufacture: 2017—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 590ST Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 9.4 t

Standard tyres: 16.9-28

Bucket width: 2.25 m

Bucket capacity: 1 m³

Bucket capacity backhoe: 0.3 m³

Drive: A

Transport length: 5.56 m

Transport width: 2.43 m

Transport height: 3.682 m

Tear-out force: 40.62 kN

Tear-out force backhoe: 53.26 kN

Max. Reach horizontal: 5.497 m

Dredging depth: 4.67 m

Max. discharge height: 2.685 m

Travel speed: 40 km/h

Model series: ST

Engine manuf.: FPT

Engine type: F 5 BFL 413 A

Engine power: 82 kW

Displacement: 3.4 l

Revolutions at max torque: 1400 rpm

Emission level: TIER 4f

More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, backhoe type, telematics available, platform, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, torque, transmission type, number of travel speeds, drive - 2wd / 4wd, service brake type, length - roading, height - over cab, maximum height, width, stabiliser type, maximum dig depth - longest dipper, reach from slew pivot - non-extending dipper, reach from slew pivot - retracted dipper, reach from slew pivot - extended dipper, loading height - non-extending dipper, loading height - retracted dipper, loading height - extended dipper, dump height - general purpose, dump angle - general purpose, dump height - multi-purpose, dump angle - multi-purpose, fuel tank, shovel capacity - standard general purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose, shovel breakout - multi-purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: Yes
Forklift utility: Yes
Grabber: No
Diesel particulate filter: No
Aircondition: Yes

Download datasheets (PDF)

Case 590ST FAQ

When was the Case 590ST backhoe loader manufactured?

The Case 590ST backhoe loader was manufactured from 2017 to 2021.

How much does the Case 590ST backhoe loader weigh?

The Case 590ST backhoe loader weighs 9.4 tons.

What are the transport dimensions of the Case 590ST backhoe loader?

The Case 590ST has a transport length of 5.56 meters, a transport width of 2.43 meters, and a transport height of 3.68 meters.

What is the travel speed of the Case 590ST backhoe loader?

The Case 590ST backhoe loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the Case 590ST backhoe loader?

The Case 590ST backhoe loader has an all-wheel drive system and uses standard tyres sized 16.9-28.

What are the dredging depth and maximum horizontal reach of the Case 590ST backhoe loader?

The Case 590ST backhoe loader has a dredging depth of 4.67 meters and a maximum horizontal reach of 5.497 meters.

What are the tear-out forces of the Case 590ST backhoe loader?

The Case 590ST backhoe loader has a tear-out force of 40.62 kN and a backhoe tear-out force of 53.26 kN.

What is the material handling capacity of the Case 590ST in terms of discharge height?

The Case 590ST has a maximum discharge height of 2.69 meters.

What are the specifications of the primary work tools on the Case 590ST backhoe loader?

The Case 590ST features a front loader bucket with a capacity of 1 cubic meter and a width of 2.25 meters, and a backhoe bucket with a capacity of 0.3 cubic meters.
