590 Super M Case 590 Super M Specifications & Technical Data (2001—2005)

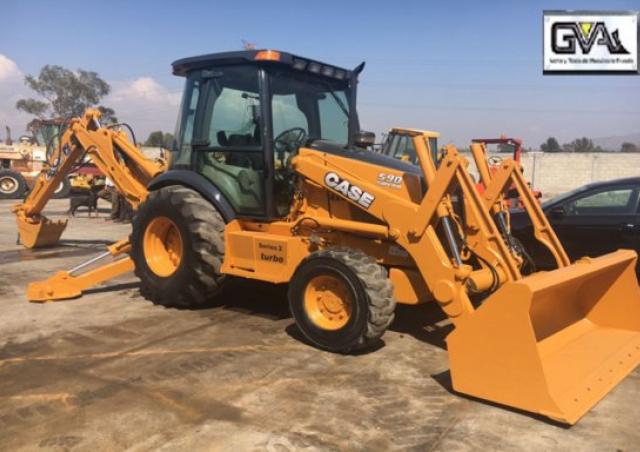

The Case 590 Super M is a backhoe loader manufactured by Case from 2001 to 2005. It has a weight of 9.179 tons and a transport len…

The Case 590 Super M is a backhoe loader manufactured by Case from 2001 to 2005. It has a weight of 9.179 tons and a transport length of 7.13 meters. The bucket capacity is 1 cubic meter, with a dredging depth of 4.85 meters and a bucket width of 2.36 meters. It has a maximum reach horizontal of 7.1 meters and a travel speed of 42 kilometers per hour. The transport width is 2.36 meters and the transport height is 2.73 meters. The backhoe bucket capacity is 0.1 cubic meters.

Backhoe Loaders Case 590 Super M

Technical specs - 590 Super M Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.179 t
Standard tyres
14.9x24
Bucket width
2.36 m
Bucket capacity
1 m³
Bucket capacity backhoe
0.1 m³
Transport length
7.13 m
Transport width
2.36 m
Transport height
2.73 m
Max. Reach horizontal
7.1 m
Dredging depth
4.85 m
Travel speed
42 km/h
Model series
Super
Engine manuf.
Case
Engine type
Family III
Engine power
75 kW
Displacement
4.5 l
Max. torque
398 Nm
No. of cylinders
4
Cylinder bore x stroke
104x132 mm

More technical details, like: drive, tear-out force, tear-out force backhoe, max. discharge height, dimension lxwxh, revolutions at max torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

Case 590 Super M FAQ

When was the Case 590 Super M manufactured?

The Case 590 Super M was manufactured from 2001 to 2005.

How much does the Case 590 Super M weigh?

The Case 590 Super M weighs 9.18 tons.

What are the transport dimensions of the Case 590 Super M backhoe loader?

The Case 590 Super M has a transport length of 7.13 meters, a transport width of 2.36 meters, and a transport height of 2.73 meters.

What is the travel speed of the Case 590 Super M backhoe loader?

The Case 590 Super M backhoe loader has a travel speed of 42 km/h.

What is the size of the standard tyres on the Case 590 Super M backhoe loader?

The Case 590 Super M backhoe loader has standard tyres sized 14.9x24.

What are the excavation performance specifications of the Case 590 Super M backhoe loader?

The Case 590 Super M has a dredging depth of 4.85 meters and a maximum horizontal reach of 7.1 meters.

What are the specifications of the primary work tools on the Case 590 Super M backhoe loader?

The Case 590 Super M has a loader bucket with a capacity of 1 cubic meter and a width of 2.36 meters, and a backhoe bucket with a capacity of 0.1 cubic meters.

How much is a Case 590 Super M Backhoe loader (2001u20132005) worth?

The residual value of the Case 590 Super M depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
