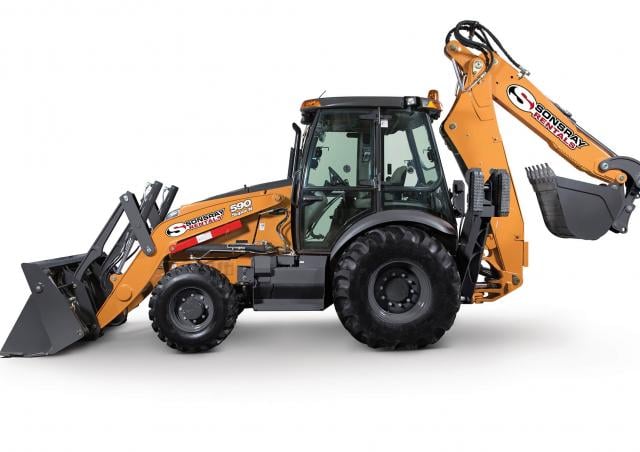

590 SN Case 590 SN Specifications & Technical Data (2013—2026)

The Case 590 SN is a backhoe loader manufactured by Case since 2013. It has a weight of 9.28 tons and a transport length of 7.25 m…

The Case 590 SN is a backhoe loader manufactured by Case since 2013. It has a weight of 9.28 tons and a transport length of 7.25 meters. The bucket capacity is 0.99 cubic meters, with a dredging depth of 4.72 meters and a bucket width of 2.36 meters. It has a maximum reach horizontal of 7.1 meters and a travel speed of 42 kilometers per hour. The transport width is 2.36 meters and the transport height is 2.68 meters. The backhoe bucket capacity is 0.1 cubic meters.

Backhoe Loaders Case 590 SN

Technical specs - 590 SN Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.28 t
Standard tyres
21Lx24 10 PR
Bucket width
2.36 m
Bucket capacity
0.99 m³
Bucket capacity backhoe
0.1 m³
Transport length
7.25 m
Transport width
2.36 m
Transport height
2.68 m
Max. Reach horizontal
7.1 m
Dredging depth
4.72 m
Travel speed
42 km/h
Model series
SN
Engine manuf.
Case
Engine type
F5C
Engine power
82 kW
Displacement
3.4 l
Max. torque
460 Nm
No. of cylinders
4
Cylinder bore x stroke
99x110 mm

More technical details, like: drive, tear-out force, tear-out force backhoe, max. discharge height, dimension lxwxh, revolutions at max torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

Case 590 SN FAQ

When was the Case 590 SN manufactured?

The Case 590 SN was first produced in 2013.

How much does the Case 590 SN backhoe loader weigh?

The Case 590 SN backhoe loader weighs 9.28 tons.

What are the transport dimensions of the Case 590 SN backhoe loader?

The Case 590 SN has a transport length of 7.25 meters, a transport width of 2.36 meters, and a transport height of 2.68 meters.

What is the travel speed of the Case 590 SN backhoe loader?

The Case 590 SN backhoe loader has a travel speed of 42 km/h.

What are the undercarriage specifications of the Case 590 SN backhoe loader?

The Case 590 SN backhoe loader comes equipped with standard tyres sized 21Lx24 10 PR.

What are the excavation performance specifications of the Case 590 SN backhoe loader?

The Case 590 SN backhoe loader has a dredging depth of 4.72 meters and a maximum horizontal reach of 7.1 meters.

What are the primary work tool specifications of the Case 590 SN backhoe loader?

The Case 590 SN has a front bucket with a capacity of 0.99 cubic meters and a width of 2.36 meters, and a backhoe bucket capacity of 0.1 cubic meters.
