580SV Case 580SV Specifications & Technical Data (2021—2025)

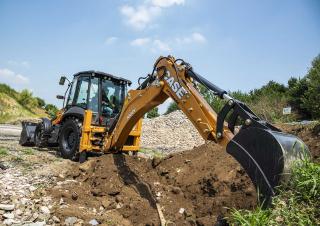

The Case 580SV is a backhoe loader manufactured by Case since 2021. It has a weight of 8.66 tons and a transport length of 5.79 me…

The Case 580SV is a backhoe loader manufactured by Case since 2021. It has a weight of 8.66 tons and a transport length of 5.79 meters. The bucket capacity is 1 cubic meter, with a tear-out force of 40.62 kilonewtons. It can dredge up to a depth of 4.37 meters and has a bucket width of 2.25 meters. The maximum discharge height is 2.68 meters, and it has a maximum reach horizontal of 5.23 meters. The travel speed of this backhoe loader is 40 kilometers per hour. It has a transport width of 2.43 meters and a transport height of 3.49 meters. Additionally, it is equipped with air conditioning, a clamshell, and a forklift utility. The backhoe bucket capacity is 0.3 cubic meters, and it has a tear-out force of 53.26 kilonewtons.

580SV

Years of manufacture: 2021—2025

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 580SV Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 8.66 t

Standard tyres: 16.9-28

Bucket width: 2.25 m

Bucket capacity: 1 m³

Bucket capacity backhoe: 0.3 m³

Drive: A

Transport length: 5.79 m

Transport width: 2.43 m

Transport height: 3.49 m

Tear-out force: 40.62 kN

Tear-out force backhoe: 53.26 kN

Max. Reach horizontal: 5.23 m

Dredging depth: 4.37 m

Max. discharge height: 2.68 m

Travel speed: 40 km/h

Model series: SV

Engine manuf.: FPT

Engine type: F5C-F5MGL413B

Engine power: 72 kW

Displacement: 3.4 l

Revolutions at max torque: 1400 rpm

Max. torque: 453 Nm

No. of cylinders: 4

Cylinder bore x stroke: 102x110 mm

Emission level: V

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: Yes
Forklift utility: Yes
Grabber: Yes
Diesel particulate filter: Yes
Aircondition: Yes

Download datasheets (PDF)

Case 580SV FAQ

When was the Case 580SV backhoe loader first manufactured?

The Case 580SV backhoe loader was first produced in 2021.

How much does the Case 580SV backhoe loader weigh?

The Case 580SV backhoe loader weighs 8.66 tons.

What are the transport dimensions of the Case 580SV backhoe loader?

The Case 580SV has a transport length of 5.79 meters, a transport width of 2.43 meters, and a transport height of 3.49 meters.

What is the travel speed of the Case 580SV backhoe loader?

The Case 580SV backhoe loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the Case 580SV backhoe loader?

The Case 580SV backhoe loader features an all-wheel drive system and standard tyres sized 16.9-28.

What is the excavation performance of the Case 580SV backhoe loader?

The Case 580SV has a dredging depth of 4.37 meters and a maximum horizontal reach of 5.23 meters.

What are the tear-out forces of the Case 580SV backhoe loader?

The Case 580SV has a tear-out force of 40.62 kN and a backhoe tear-out force of 53.26 kN.

What is the material handling capacity of the Case 580SV in terms of discharge height?

The Case 580SV has a maximum discharge height of 2.68 meters.

What are the specifications of the primary work tool on the Case 580SV backhoe loader?

The Case 580SV features a bucket capacity of 1 cubic meter, a bucket width of 2.25 meters, and a backhoe bucket capacity of 0.3 cubic meters.
