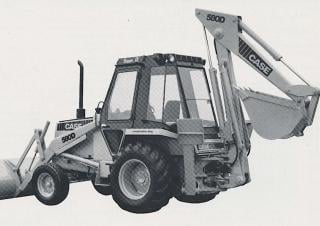

580 Super D Case 580 Super D Specifications & Technical Data (1980—1984)
Technical specs - 580 Super D Case
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 3.438 t
- Standard tyres
- 17.5Lx24
- Bucket width
- 1.88 m
- Bucket capacity
- 0.6 m³
- Transport length
- 3.4 m
- Transport width
- 2.05 m
- Transport height
- 2.63 m
- Tear-out force
- 31.315 kN
- Tear-out force backhoe
- 33.806 kN
- Max. Reach horizontal
- 7.65 m
- Dredging depth
- 5.72 m
- Max. discharge height
- 4.35 m
- Travel speed
- 34.6 km/h
- Model series
- Super
- Engine manuf.
- Case
- Engine type
- G207DT
- Engine power
- 49.2 kW
- Displacement
- 3.392 l
- Max. torque
- 241 Nm
- No. of cylinders
- 4
- Cylinder bore x stroke
- 102x105 mm
More technical details, like: bucket capacity backhoe, drive, dimension lxwxh, revolutions at max torque, emission level are available in the full technical specs.
Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket
Special equipment
- Outrigger stabilisers
-
Yes
- Clamshell
-
No
- Forklift utility
-
Yes
- Grabber
-
No
- Diesel particulate filter
-
No
- Aircondition
-
No
