580 SN WT Case 580 SN WT Specifications & Technical Data (2013—2026)

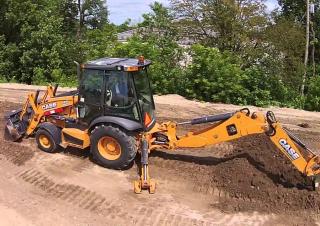

The Case 580 SN WT is a backhoe loader manufactured by Case since 2013. It has a weight of 9.065 tons and a transport length of 7.…

The Case 580 SN WT is a backhoe loader manufactured by Case since 2013. It has a weight of 9.065 tons and a transport length of 7.11 meters. The bucket capacity is 0.99 cubic meters, with a tear-out force of 50.93 kN. The dredging depth is 5.48 meters, and the bucket width is 2.36 meters. The maximum discharge height is 4.38 meters, and the maximum reach horizontal is 7.71 meters. It has a travel speed of 46.6 km/h. The transport width is 2.59 meters, and the transport height is 2.73 meters. The backhoe has a bucket capacity of 0.1 cubic meters and a tear-out force of 60.388 kN. It also comes with special equipment including forklift utility and outrigger stabilizers.

580 SN WT

Years of manufacture: 2013—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 580 SN WT Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 9.065 t

Standard tyres: 21.0Lx24 10-ply

Bucket width: 2.36 m

Bucket capacity: 0.99 m³

Bucket capacity backhoe: 0.1 m³

Transport length: 7.11 m

Transport width: 2.59 m

Transport height: 2.73 m

Tear-out force: 50.93 kN

Tear-out force backhoe: 60.388 kN

Max. Reach horizontal: 7.71 m

Dredging depth: 5.48 m

Max. discharge height: 4.38 m

Travel speed: 46.6 km/h

Model series: SN

Engine manuf.: Case

Engine type: F5C

Engine power: 72 kW

Displacement: 3.4 l

Max. torque: 453 Nm

No. of cylinders: 4

Cylinder bore x stroke: 99x110 mm

Emission level: Tier 4 i

More technical details, like: drive, dimension lxwxh, revolutions at max torque are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: No
Forklift utility: Yes
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download datasheets (PDF)

580 SN WT Case Specification for Europe (EN)

Case 580 SN WT FAQ

When was the Case 580 SN WT manufactured?

The Case 580 SN WT was first produced in 2013.

How much does the Case 580 SN WT backhoe loader weigh?

The Case 580 SN WT backhoe loader weighs 9.07 tons.

What are the transport dimensions of the Case 580 SN WT backhoe loader?

The Case 580 SN WT has a transport length of 7.11 meters, a transport width of 2.59 meters, and a transport height of 2.73 meters.

What is the travel speed of the Case 580 SN WT backhoe loader?

The Case 580 SN WT backhoe loader has a travel speed of 46.6 km/h.

What are the undercarriage specifications of the Case 580 SN WT backhoe loader?

The Case 580 SN WT backhoe loader is equipped with standard tyres sized 21.0Lx24 10-ply.

What are the excavation performance specifications of the Case 580 SN WT backhoe loader?

The Case 580 SN WT has a dredging depth of 5.48 meters and a maximum horizontal reach of 7.71 meters.

What are the tear-out forces of the Case 580 SN WT backhoe loader?

The Case 580 SN WT has a tear-out force of 50.93 kN and a backhoe tear-out force of 60.39 kN.

What is the material handling capacity of the Case 580 SN WT in terms of maximum discharge height?

The Case 580 SN WT has a maximum discharge height of 4.38 meters.

What are the primary bucket specifications of the Case 580 SN WT backhoe loader?

The Case 580 SN WT has a front bucket capacity of 0.99 cubic meters with a width of 2.36 meters, and its backhoe bucket capacity is 0.1 cubic meters.
