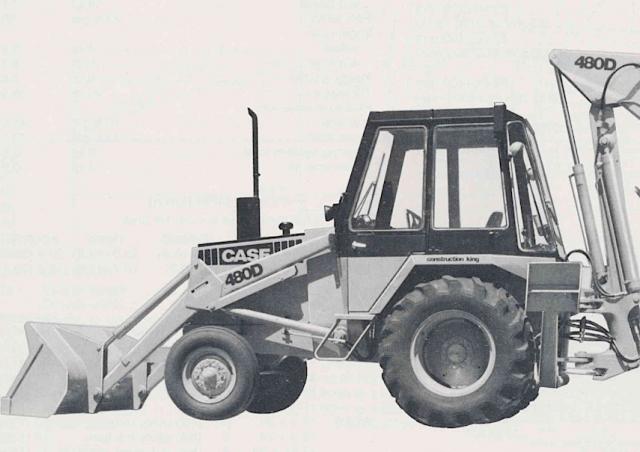

480D Case 480D Specifications & Technical Data (1980—1985)
Technical specs - 480D Case
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 2.876 t
- Standard tyres
- 14.9x24
- Bucket width
- 1.62 m
- Bucket capacity
- 0.57 m³
- Bucket capacity backhoe
- 0.05 m³
- Transport length
- 3.2 m
- Transport width
- 1.91 m
- Transport height
- 2.55 m
- Tear-out force
- 25.355 kN
- Tear-out force backhoe
- 33.798 kN
- Max. Reach horizontal
- 5.73 m
- Dredging depth
- 3.67 m
- Max. discharge height
- 2.57 m
- Travel speed
- 33.7 km/h
- Model series
- D
- Engine manuf.
- Case
- Engine type
- G188D
- Engine power
- 39 kW
- Displacement
- 3.081 l
- No. of cylinders
- 4
- Cylinder bore x stroke
- 97x105 mm
More technical details, like: drive, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.
Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket
Special equipment
- Outrigger stabilisers
-
Yes
- Clamshell
-
No
- Forklift utility
-
No
- Grabber
-
No
- Diesel particulate filter
-
No
- Aircondition
-
No
