480 Case 480 Specifications & Technical Data (1967—1971)

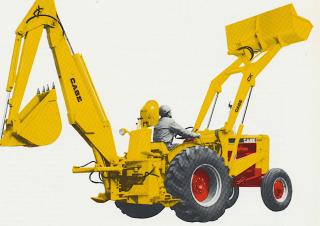

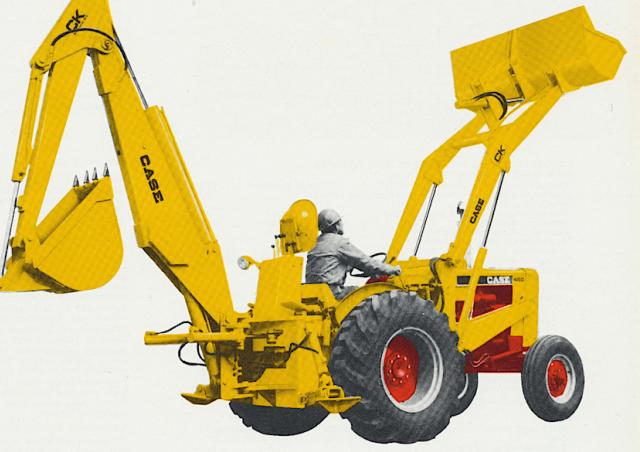

The Case 480 Backhoe Loader, manufactured by Case from 1967 to 1971, is a construction machine with a weight of 3.77 tons. It has …

The Case 480 Backhoe Loader, manufactured by Case from 1967 to 1971, is a construction machine with a weight of 3.77 tons. It has a transport length of 6.69 meters and a transport width of 2.21 meters. The dredging depth of this backhoe loader is 3 meters, while the maximum discharge height is 3.5 meters. It has a maximum reach horizontal of 4.68 meters and a travel speed of 27.8 km/h. The transport height of the machine is 3.4 meters. The backhoe bucket capacity is 0.054 cubic meters. Additionally, it is equipped with outrigger stabilizers.

Backhoe Loaders Case 480

Technical specs - 480 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.77 t
Standard tyres
14.9x24
Bucket capacity backhoe
0.054 m³
Transport length
6.69 m
Transport width
2.21 m
Transport height
3.4 m
Max. Reach horizontal
4.68 m
Dredging depth
3 m
Max. discharge height
3.5 m
Travel speed
27.8 km/h
Engine manuf.
Case
Engine type
G188D
Engine power
41.5 kW
Displacement
3.081 l
No. of cylinders
4
Cylinder bore x stroke
97x105 mm

More technical details, like: bucket width, bucket capacity, drive, tear-out force, tear-out force backhoe, model series, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

Case 480 FAQ

When was the Case 480 backhoe loader manufactured?

The Case 480 backhoe loader was manufactured from 1967 to 1971.

How much does the Case 480 backhoe loader weigh?

The Case 480 backhoe loader weighs 3.77 tons.

What are the transport dimensions of the Case 480 backhoe loader?

The Case 480 backhoe loader has a transport length of 6.69 meters, a transport width of 2.21 meters, and a transport height of 3.4 meters.

What is the travel speed of the Case 480 backhoe loader?

The Case 480 backhoe loader has a travel speed of 27.8 km/h.

What are the undercarriage tyre specifications of the Case 480 backhoe loader?

The Case 480 backhoe loader is equipped with standard tyres sized 14.9x24.

What are the excavation performance specifications of the Case 480 backhoe loader?

The Case 480 backhoe loader has a dredging depth of 3 meters and a maximum horizontal reach of 4.68 meters.

What is the material handling capacity of the Case 480 in terms of discharge height?

The Case 480 has a maximum discharge height of 3.5 meters.

What is the backhoe bucket capacity of the Case 480 backhoe loader?

The backhoe bucket capacity of the Case 480 is 0.05 cubic meters.

How much is a Case 480 Backhoe loader (1967u20131971) worth?

The residual value of the Case 480 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
