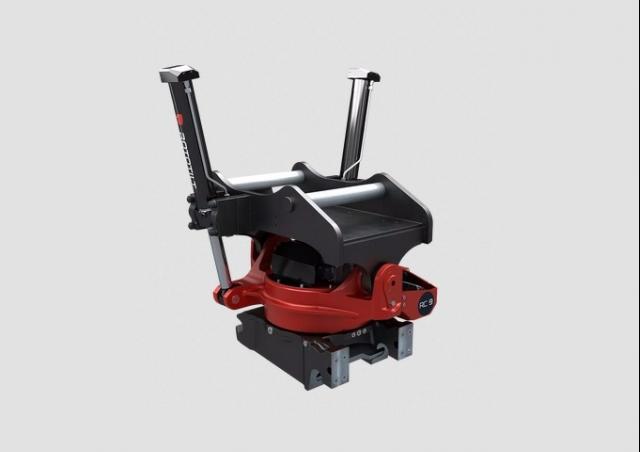

RC9 Rototilt® RC9 Specifications & Technical Data (2022—2026)

Max excavator weight: 43t – Max bucket capacity: 2.3m³ – Max bucket width: 2400mm – Max breakout force: 280kN – Max breakout torque: 500kNm – Weight: 1480kg

Technical specs - RC9 Rototilt®

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Max excavator weight
43 t
Max bucket capacity
2.3 m³
Max bucket width
2400 mm
Max breakout force
280 kN
Max breakout torque
500 kNm
Weight
1480 kg
Tilt angle
40 °
Rotation speed
7 s
Working pressure
25 MPa
Max return pressure
2 MPa
Max. oil flow
206 l/min
Nr. of lubrication points
8
Turn torque
19100 Nm
Pressure at max turn torque
25 MPa
Model series
RC
