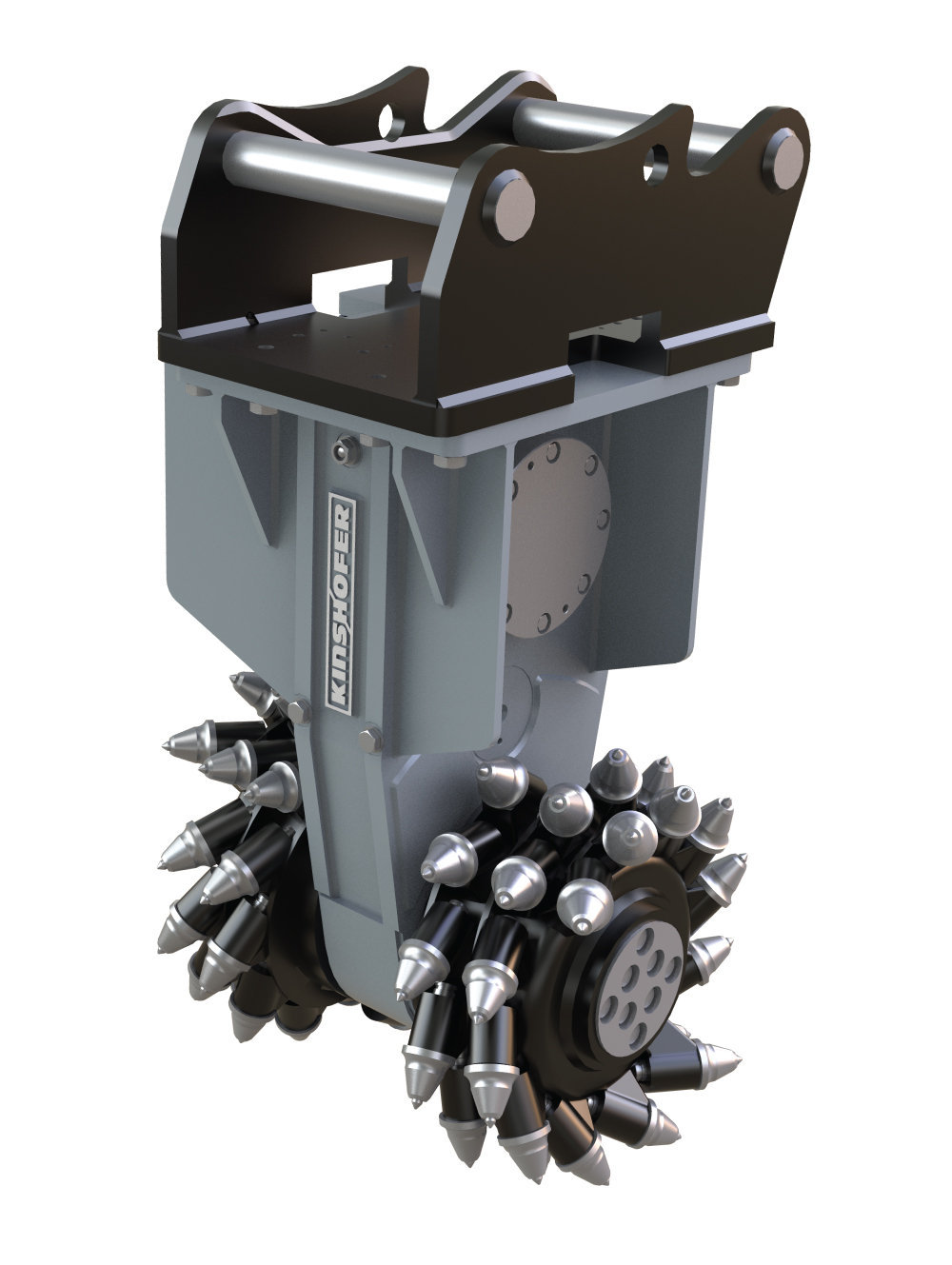

DX04 Hammer DX04 Specifications & Technical Data (2020—2026)

Cutter head width: 500mm – Carrying device: 2-4t – Cutter head Ø: 350mm – Drive power: 18kW – Torque output: 13.32kNm – Weight: 250kg

Attachments Mountable Milling Heads For Hydraulic Excavators Hammer DX04

Technical specs - DX04 Hammer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Cutter head width
500 mm
Carrying device
2-4 t
Cutter head Ø
350 mm
Drive power
18 kW
Torque output
13.32 kNm
Weight
250 kg
Cutting depth
65 mm
Oil flow
65 l/min
No. of Blows
65 1/min
Impact energy
18 kJ
Total length
700 mm
Model series
DX

Basic model incl. milling head

Special equipment

Transverse cutter head
No
Longitudinal cutter head
No
Rock cutting drum
No
Demolition cutting drum
No
Scaling cutting drum
No
