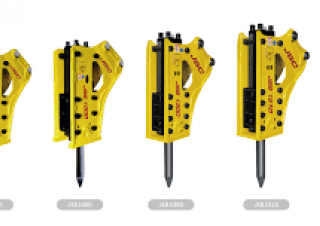

JSB40N Jisung JSB40N Specifications & Technical Data (2021—2026)

Weight: 2600kg – Carrying device: 35-55t – Impact energy: 7.5kJ – Tool Ø: 155mm – Oil flow: 240l/min – Operating pressure: 180bar

Attachments Hydraulic Breakers Jisung JSB40N

Technical specs - JSB40N Jisung

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2600 kg
Carrying device
35-55 t
Impact energy
7.5 kJ
Tool Ø
155 mm
Oil flow
240 l/min
Operating pressure
180 bar
Model series
N

More technical details, like: no. of blows, total length are available in the full technical specs.

Basic model without chisel and without adapter for excavator

Special equipment

Central lubrication
No
silenced
No
Subaqueous equipment
No
Quick hitch mech.
No
