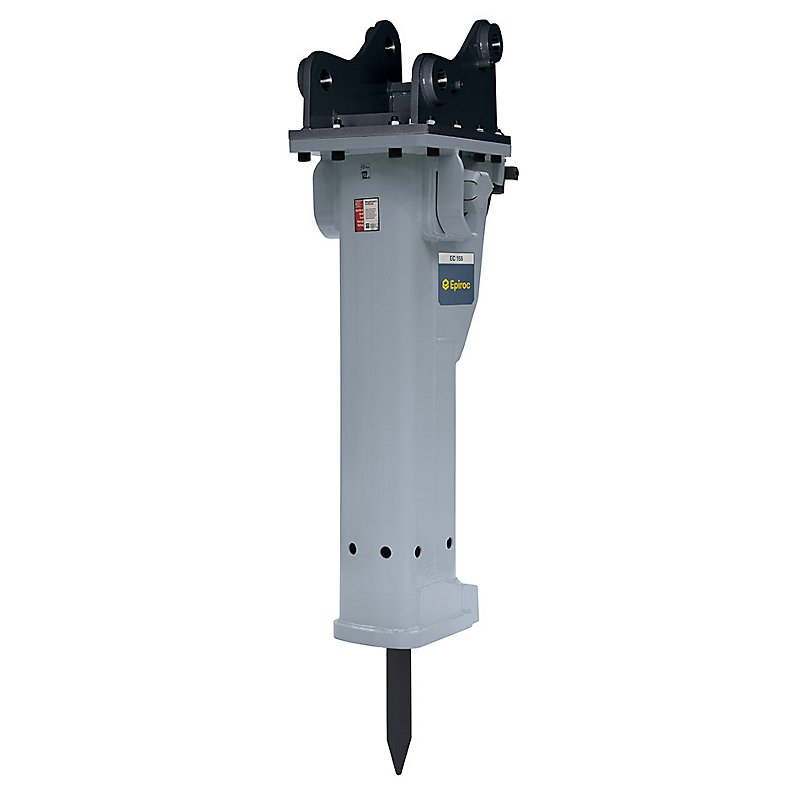

EC 155 Epiroc EC 155 Specifications & Technical Data (2019—2025)

Weight: 2600kg – No. of Blows: 8001/min – Carrying device: 30-45t – Total length: 2020mm – Tool Ø: 155mm – Oil flow: 220l/min

Attachments Hydraulic Breakers Epiroc EC 155

Visit Epiroc live at

Technical specs - EC 155 Epiroc

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2600 kg
No. of Blows
800 1/min
Carrying device
30-45 t
Total length
2020 mm
Tool Ø
155 mm
Oil flow
220 l/min
Operating pressure
180 bar
Model series
EC

Basic model without chisel and without adapter for excavator

Special equipment

Central lubrication
No
silenced
Yes
Subaqueous equipment
No
Quick hitch mech.
No

Download datasheets (PDF)

Epiroc EC 155 overview

Hammer

VibroSilenced Plus

Non-metallic suspension arrangements to isolate percussion mechanism from breaker box and sealing of all openings for lower noise and vibration levels.


Monoblock design

Combined cylinder & tool holder section eliminating the need for tie rods for higher reliability; replaceable piston liner for cost-effective repairs.


Operating cycle

Stroke Control Valve

The combined stroke length and start-up mode switching valve enables the operator to adjust the breaker operation mode to the application for optimum performance.
