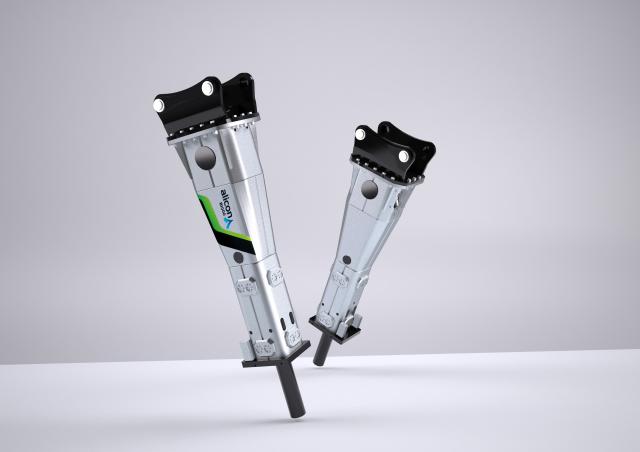

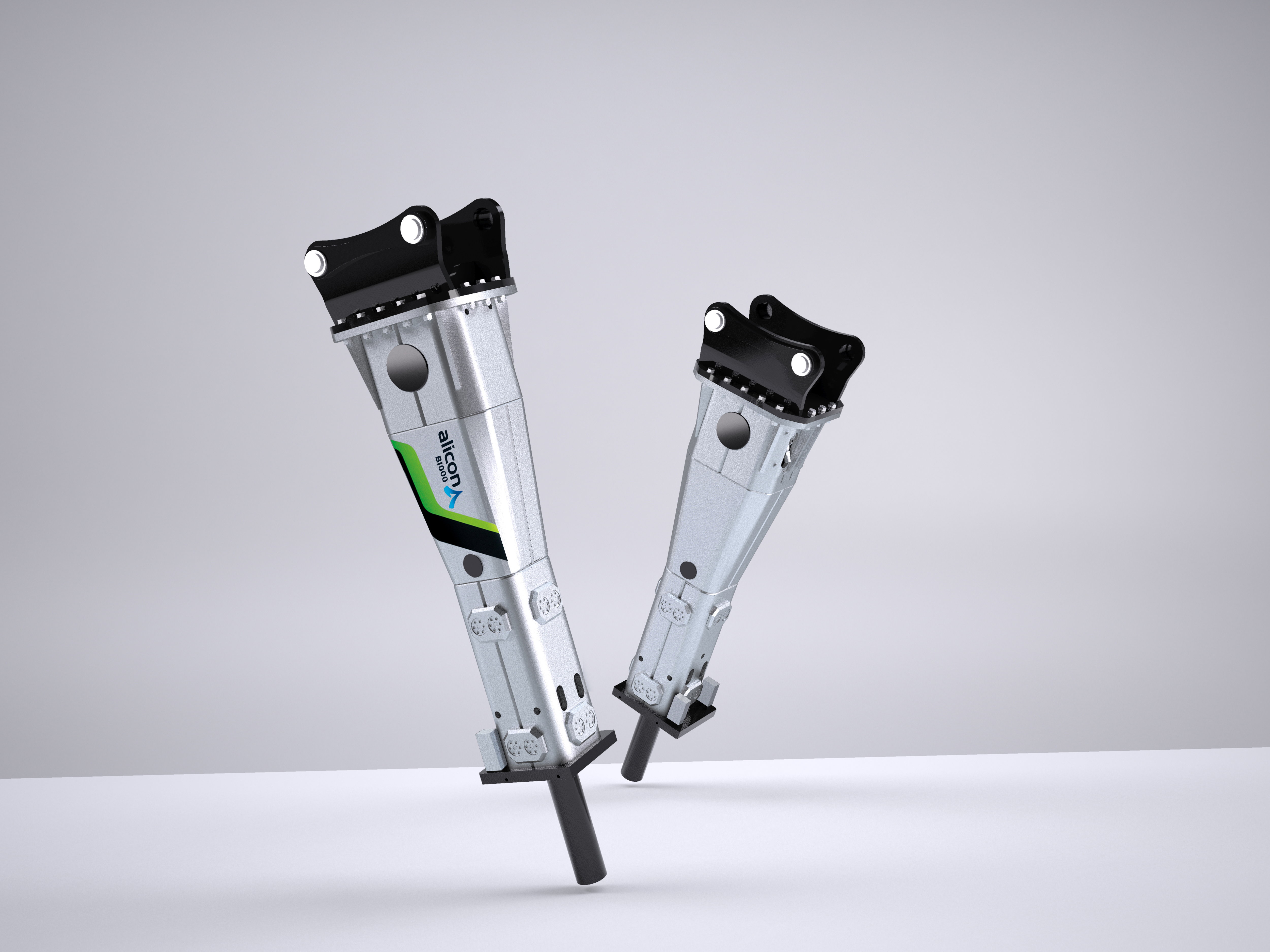

B1000 Daemo B1000 Specifications & Technical Data (2019—2026)

Weight: 8060kg – No. of Blows: 3601/min – Carrying device: 85-140t – Total length: 4875mm – Tool Ø: 220mm – Oil flow: 455l/min

Attachments Hydraulic Breakers Daemo B1000
Attachments Hydraulic Breakers Daemo B1000
Attachments Hydraulic Breakers Daemo B1000
Attachments Hydraulic Breakers Daemo B1000
Attachments Hydraulic Breakers Daemo B1000
Attachments Hydraulic Breakers Daemo B1000

Technical specs - B1000 Daemo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8060 kg
No. of Blows
360 1/min
Carrying device
85-140 t
Total length
4875 mm
Tool Ø
220 mm
Oil flow
455 l/min
Model series
B

More technical details, like: impact energy, operating pressure are available in the full technical specs.

Basic model without chisel and without adapter for excavator

Special equipment

Central lubrication
No
silenced
No
Subaqueous equipment
No
Quick hitch mech.
No

Download datasheets (PDF)

Daemo B1000 overview

Application

Features

Scarify frost and hard ground prior to using a bucket. Used for removing stumps, roots or rebar. High strength and solid body. Single & Double points type available. High compaction efficiency for ground, trench and slope. Requires breaker piping line (S/ACT) (additional). Control block system for easy & safe setting. Robust design with bending structure & hub type damper.


Operating cycle

Features

360° workable direction. H-beam and I-beam can be cut in a single cut. Easier cutter replacement. Speed-up valve accelerates work speed (Optional). Light weight and high durability. Dual cylinder system for speedy and powerful operation. Improved durability using Hardox material. Easy maintenance. High performance and low vibration. Speed-up valve accelerates work speed (optional). Free rotating type (standard). Durability with wear-resistant tooth material. Low noise, less vibration design. Dual purpose: crushing concrete and cutting steel bars. Tooth replacement and speed-up valve (optional). Welding tooth type and bolting tooth type available. 360° workable direction. Workable on narrow building spaces or noise regulated environments. Speed-up valve accelerates work speed (optional). Moving arm tooth replaceable as standard. Welding tooth type and bolting tooth type available. Enlarged cutter length and optimized crushing power. Cover plate for protecting cylinder. Speed-up valve accelerates work speed. Exchangeable wear parts: arm, body tooth, cutter. Hardox 400 for high durability. Clamp arm and 360° rotating cutter enables elaborate work. Speedy demolition without pre-process. Car dismantle work can be performed by one machine. Engine pulling type available. Link type mounting bracket. Rotating type. Loading/unloading timbers, logs and pipes. Wide jaws suitable for various work requirements. High efficiency. Extended operational area. High efficiency for loading/unloading metal scrap. Reduced cost of follow-up maintenance. Type options: fixed, link, knuckle and grapple. Convenient maintenance using hydraulic generator. Various applications with the wide pin-to-pin distance. Outstanding durability by using abrasion-resistant and high strength material. Safety valve integrated cylinder and manual safety pin. Low-alloy steel increased maximum strength to weight. Standard package: boom + arm. Various kinds of grapple and clamshell bucket can be installed. Pendulum type. Rotating options: hydraulic rotating type, free rotating type, fixed type available. Tooth can be installed as an option. Standard clamshell has no tooth.


Mounting

Features

New alicon series breaker became Lighter, Stronger and more Powerful than ever. Enlarged the diameter of T/Bolt improved its durability. Changed the hose connecting port from Split Flange structure In/Out port to New Adaptor type port (Prevent bolt breakage and oil leakage : B06~B1000). Switched Box Housing to Bending design for more durability. Diversified 20 products lines to fit to any work conditions. Redesigned chisel pin has improved durability. Enlarged chisel's diameter improved more powerful impact. Anti Blank Firing system increased the life of breaker (Chisel Pins, T/Bolts, F/Head, etc). More options: Anti Blank Firing On/Off valve, TPC system (2 stages stroke valve), Internal Relief Valve, BPM adjust Valve, Provision Hole for underwater works and Auto Grease System. Improved durability using Hardox 400 (Hitch & Hook). Robust structure with Triple Safety locking system. Automatic locking mechanism for both front and rear without leaving the cabin. Rear Pin Lock allows the operator to clearly see from the cabin.
