CH-190 Case CH-190 Specifications & Technical Data (2018—2026)

Weight: 2245kg – No. of Blows: 4901/min – Impact energy: 7.5kJ – Tool Ø: 140mm – Oil flow: 210l/min – Carrying device: t

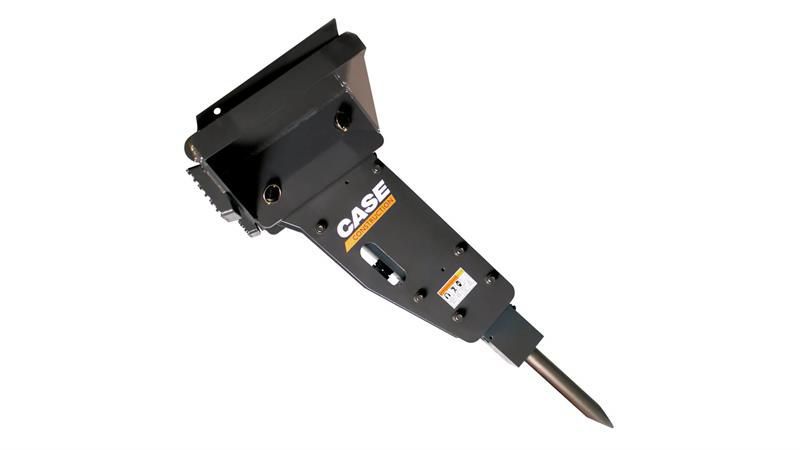

Attachments Hydraulic Breakers Case CH-190
Attachments Hydraulic Breakers Case CH-190
Attachments Hydraulic Breakers Case CH-190
Attachments Hydraulic Breakers Case CH-190

Technical specs - CH-190 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2245 kg
No. of Blows
490 1/min
Impact energy
7.5 kJ
Tool Ø
140 mm
Oil flow
210 l/min

More technical details, like: carrying device, total length, operating pressure, model series are available in the full technical specs.

Basic model without chisel and without adapter for excavator

Special equipment

Central lubrication
No
silenced
No
Subaqueous equipment
Yes
Quick hitch mech.
Yes
