MD290 S VTN MD290 S Specifications & Technical Data (2017—2026)

Name: VTN MD290 S Demolition Sorting Grabs
Brand: VTN

Grabber capacity: 0.8m³ – Carrying device: 20-29t – Closing force: 89.6kN – Height: 1735mm – Width: 1500mm – Opening width: 2260mm

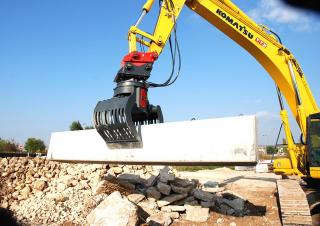

Attachments Demolition Sorting Grabs VTN MD290 S

MD290 S

Years of manufacture: 2017—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - MD290 S VTN

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Grabber capacity: 0.8 m³

Carrying device: 20-29 t

Closing force: 89.6 kN

Height: 1735 mm

Width: 1500 mm

Opening width: 2260 mm

Max. pressure: 320 bar

Weight: 1.765 t

Model series: MD

Basic model without hoselines and adapter for excavator

Special equipment

endless rotation: No
Hydr. grabber rotating mechanism: No
Piston rod protections: No
Quick hitch mech.: No

Download datasheets (PDF)

VTN MD290 S overview

Performance

Md Series - Excavators

9 models for excavators with operating weight from 1.5 to 60 ton: 360° rotation High gripping strength 5 kits available Reversible and interchangeable under-blades High capacity Cylinder with brake system
