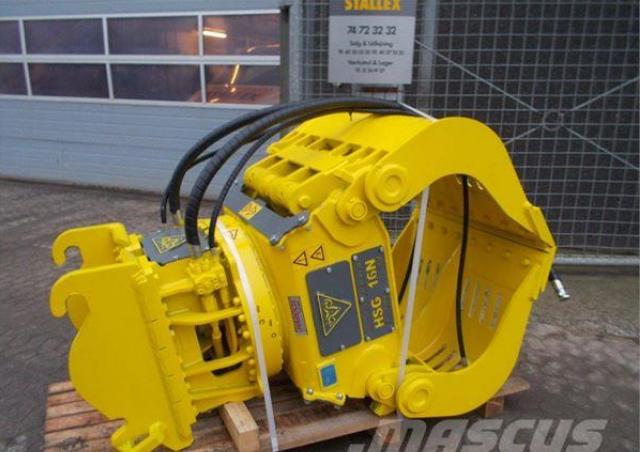

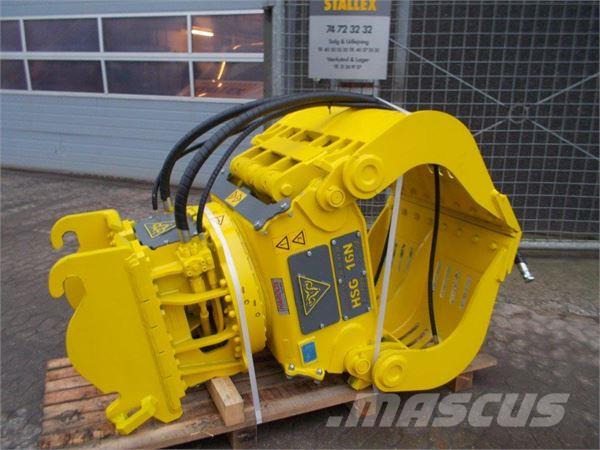

HSG 16 N Hydra Ram HSG 16 N Specifications & Technical Data (2011—2014)

Grabber capacity: 0.9m³ – Carrying device: 20-25t – Height: 1580mm – Width: 1260mm – Opening width: 1950mm – Max. pressure: 310bar

Visit Hydra Ram live at

Technical specs - HSG 16 N Hydra Ram

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Grabber capacity
0.9 m³
Carrying device
20-25 t
Height
1580 mm
Width
1260 mm
Opening width
1950 mm
Max. pressure
310 bar
Weight
1.53 t
Model series
HSG

Basic model without hoselines and adapter for excavator

Special equipment

endless rotation
No
Hydr. grabber rotating mechanism
No
Piston rod protections
No
Quick hitch mech.
No
