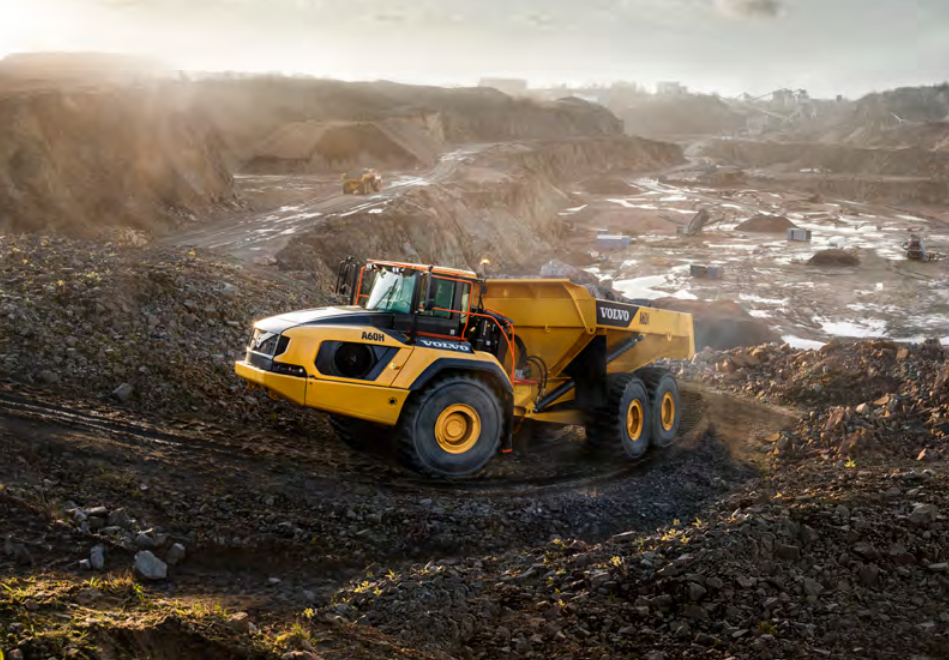

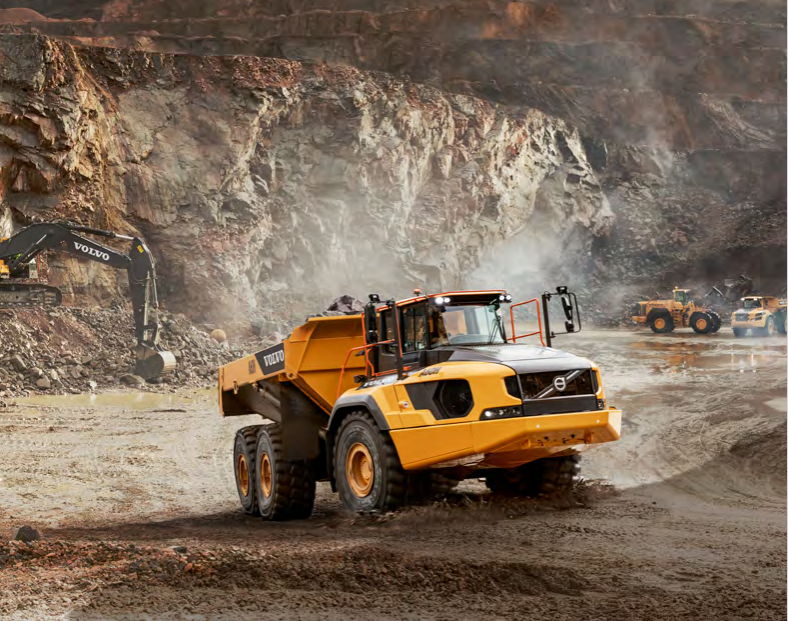

A60H Volvo A60H Specifications & Technical Data (2025—2026)
.png)
.png)
.png)
.png)
Visit Volvo live at
Technical specs - A60H Volvo
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 43.4 t
- Standard tyres
- 33.25 R 29
- Dump capacity
- 33.6 m³
- Travel speed
- 55 km/h
- Net load
- 55 t
- Transport length
- 12.225 m
- Transport width
- 3.884 m
- Transport height
- 3.852 m
- Turning radius outside
- 10.014 m
- Loading height
- 3.51 m
- Model series
- A
- Engine manuf.
- Volvo
- Engine type
- D16F
- Engine power
- 495 kW
- Displacement
- 16.1 l
- Revolutions at max torque
- 1800 rpm
- Max. torque
- 3200/1050 Nm
- No. of cylinders
- 6
- Emission level
- II
More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Special equipment
- Diesel particulate filter
-
No
- Central lubrication
-
No
- Heated dump body
-
No
- Tailgate
-
No
- Aircondition
-
No
