A35 Volvo A35 Specifications & Technical Data (2025—2026)

Weight: 29.8t – Standard tyres: 26.5 R 25 – Dump capacity: 21.3m³ – Travel speed: 57km/h – Net load: 34.5t – Transport length: 11.261m

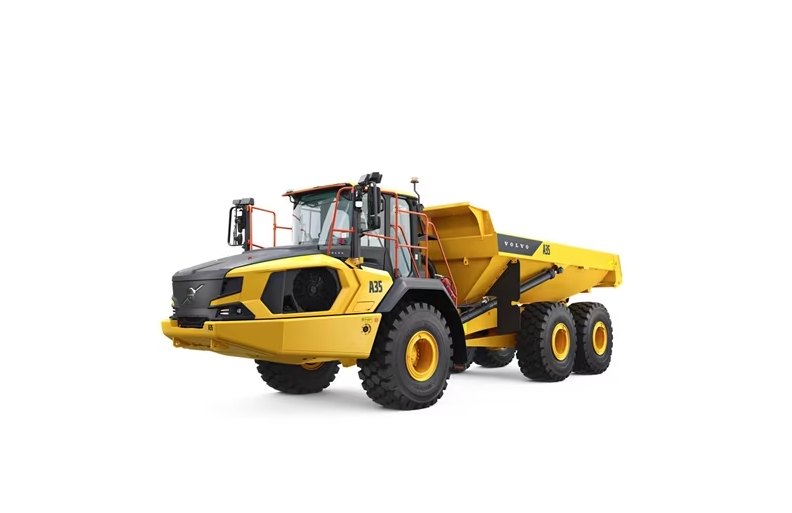

Articulated Dump Trucks Volvo A35
Articulated Dump Trucks Volvo A35
Articulated Dump Trucks Volvo A35
Articulated Dump Trucks Volvo A35
Articulated Dump Trucks Volvo A35
Articulated Dump Trucks Volvo A35
Articulated Dump Trucks Volvo A35
Articulated Dump Trucks Volvo A35

Technical specs - A35 Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
29.8 t
Standard tyres
26.5 R 25
Dump capacity
21.3 m³
Travel speed
57 km/h
Net load
34.5 t
Transport length
11.261 m
Transport width
3.345 m
Transport height
3.568 m
Turning radius outside
9.118 m
Loading height
2.94 m
Model series
A
Engine manuf.
Volvo
Engine type
D13F
Engine power
336 kW
Displacement
12.8 l
Revolutions at max torque
1900 rpm
Max. torque
2407/1100 Nm
No. of cylinders
6
Emission level
II

More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Special equipment

Diesel particulate filter
No
Central lubrication
No
Heated dump body
No
Tailgate
No
Aircondition
No
