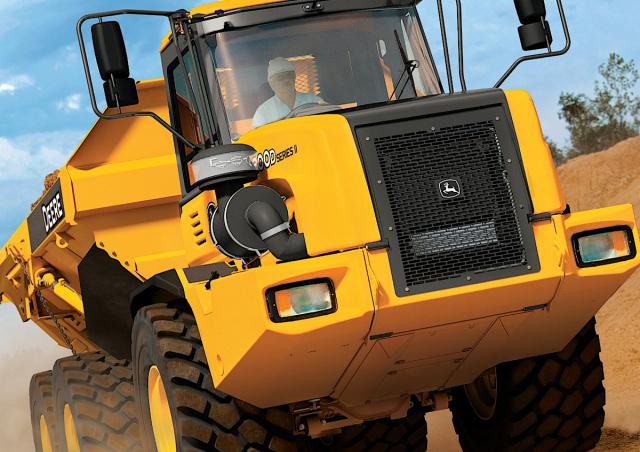

350D II John Deere Construction 350D II Specifications & Technical Data (2009—2021)
Technical specs - 350D II John Deere Construction
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 28.255 t
- Standard tyres
- 26.5 R25
- Dump capacity
- 20.1 m³
- Travel speed
- 54 km/h
- Net load
- 32.53 t
- Transport length
- 10.26 m
- Transport width
- 3.81 m
- Transport height
- 3.84 m
- Turning radius outside
- 9.13 m
- Loading height
- 2.18 m
- Model series
- D
- Engine manuf.
- Mercedes-Benz
- Engine type
- OM501 LA
- Engine power
- 283 kW
- Displacement
- 11.95 l
- Max. torque
- 1824 Nm
- No. of cylinders
- 6
- Emission level
- EPA Tier 3
More technical details, like: dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.
Special equipment
- Diesel particulate filter
-
Yes
- Central lubrication
-
No
- Heated dump body
-
No
- Tailgate
-
No
- Aircondition
-
Yes
Download datasheets (PDF)
