722 JCB 722 Specifications & Technical Data (2004—2009)

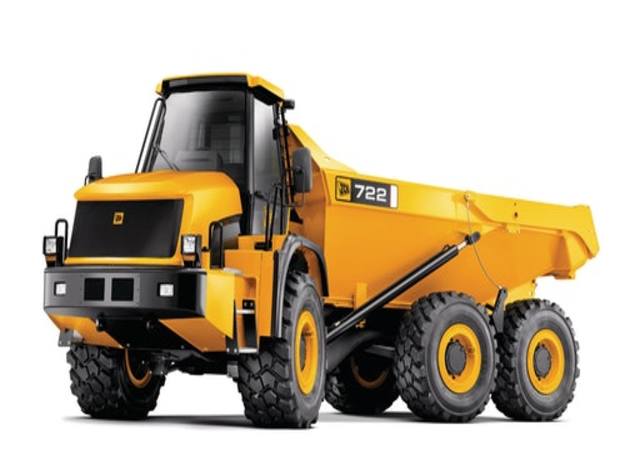

Manufactured by JCB, this is the 722 articulated dump truck. Find and download detailed specs and data sheets for this machine her…

Manufactured by JCB, this is the 722 articulated dump truck. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Cummins engine, this 722 15.7t machine can provide 186kW or 249 horse power for the articulated dump truck. The JCB 722 can be grouped in the smallest machine segment in the articulated dump trucks category.

The JCB 722 has been equipped and sold with Aircondition. It has been sold without air Tailgate, Central lubrication and Diesel particulate filter as of 2009. There are more detailed specifications and machine descriptions available in the original JCB 722 specs data sheet. Specification sheet is available for a free download in German - providing the machine descriptions and more detailed specs about this particular model.

The production stopped in 2009, where this 722 was available at a new list price between €249000 and €317000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, other articulated dump trucks, which range from up to are produced by JCB. Of these, are the most frequently visited on LECTURA Specs. We can see currently about models of the 722 articulated dump truck with an average age of 9 years and average price of €50400. Want more detailed specifications? Download the latest JCB 722 specs data sheet on LECTURA Specs today!

Technical specs - 722 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.7 t
Standard tyres
20.5 R 25
Dump capacity
12 m³
Net load
20 t
Engine manuf.
Cummins
Engine type
QSB5.9
Engine power
186 kW

More technical details, like: travel speed, transport length, transport width, transport height, turning radius outside, loading height, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: travel speed, transport length, transport width, transport height, turning radius outside, loading height, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, engine manufacturer, engine model, emission rating, number of cylinders, rated speed, engine output - net, engine output - gross, torque, drive configuration, transmission type, transmission manufacturer, transmission model, front differential, second axle differential, third axle differential, tyre - size, tyre - type, front suspension - type, front suspension, rear suspension - type, rear suspension, service brake - type, length - overall, height - over cab, height - max, ground clearance, width - over tyres, width - transport, width - operating, wheelbase, length - body, loading height, full dump height, hoist - type, hoist - angle, approach angle, articulation angle, turning radius - outside, turning radius - inside, fuel tank, heaped capacity, cycle time - raise, unladen axle load - front, unladen axle load - centre, unladen axle load - rear, unladen axle load - centre + rear, laden axle load - front, laden axle load - centre, laden axle load - rear, laden axle load - centre + rear, front - unladen, rear - unladen, front - laden, rear - laden, speed - forward maximum, speed - reverse maximum, net weight, payload, gross weight are available in the full technical specs.

Special equipment

Diesel particulate filter
No
Central lubrication
No
Heated dump body
No
Tailgate
No
Aircondition
Yes

Download datasheets (PDF)

JCB 722 FAQ

When was the JCB 722 articulated dump truck manufactured?

The JCB 722 articulated dump truck was manufactured from 2004 to 2009.

How much does the JCB 722 articulated dump truck weigh?

The JCB 722 articulated dump truck weighs 15.7 tons.

What are the undercarriage specifications of the JCB 722 articulated dump truck?

The JCB 722 articulated dump truck has standard tyres sized 20.5 R 25.

What is the material handling capacity of the JCB 722 articulated dump truck?

The JCB 722 articulated dump truck has a net load capacity of 20 tons and a dump capacity of 12 cubic meters.

How much is a JCB 722 Articulated dump truck (2004u20132009) worth?

The residual value of the JCB 722 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
