912FS Hydrema 912FS Specifications & Technical Data (2015—2021)

Hydrema is the manufacturer of the articulated dump truck model H 912 FS Multitip. Find and download detailed specs and data sheet…

Hydrema is the manufacturer of the articulated dump truck model H 912 FS Multitip. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Cummins engine, this H 912 FS Multitip 8t machine can provide 108kW or 144 horse power for the articulated dump truck. The Hydrema H 912 FS Multitip can be grouped in the smallest machine segment in the articulated dump trucks category.

Since 2015, this model has included Aircondition. It does not include Diesel particulate filter, Central lubrication and Bin heating. There are more detailed specifications and machine descriptions available in the original Hydrema H 912 FS Multitip specs data sheet.

This model can be acquired for a list price between €155000 and €197000. Production of the H 912 FS Multitip continues in 2017. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Hydrema models of this type on LECTURA Specs are the H 912 FS, H 912 F and H 922 F, and 5 other articulated dump trucks, which currently range from 7.7t up to 16.6t are also available. This H 912 FS Multitip articulated dump truck, which has been in production between 2015 and 2017 ranks in the LECTURA index at #38. Want more detailed specifications? Download the latest Hydrema H 912 FS Multitip specs data sheet on LECTURA Specs today!

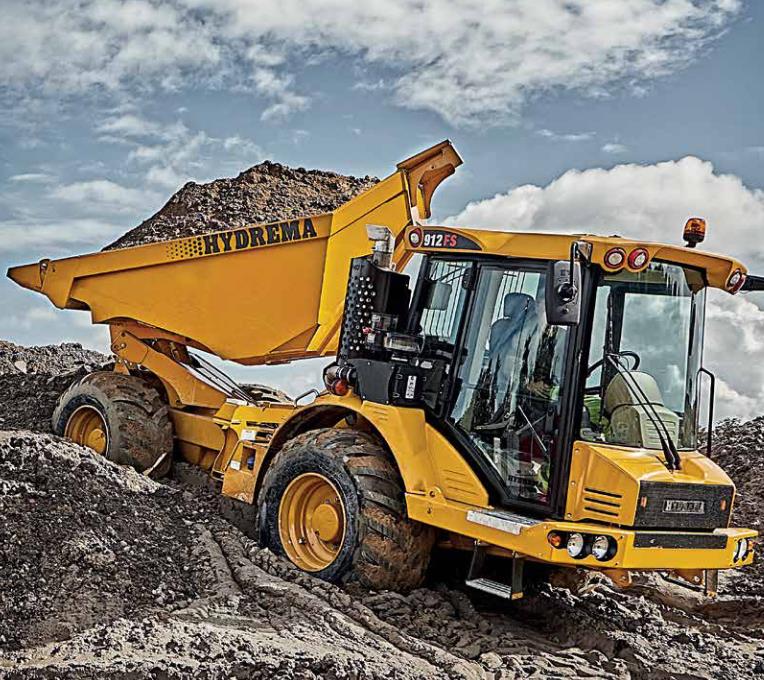

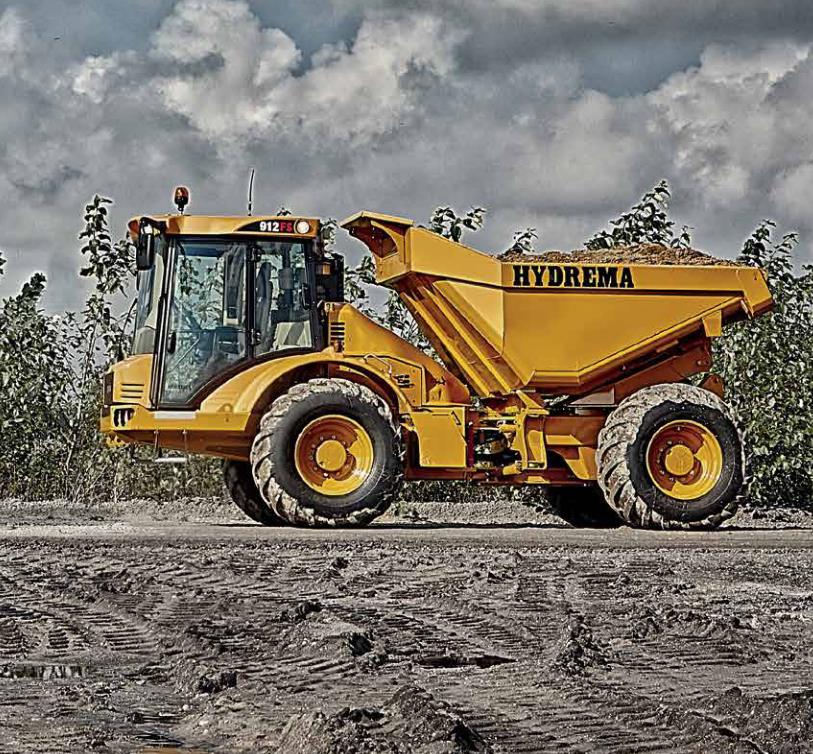

Articulated Dump Trucks Hydrema 912FS
Articulated Dump Trucks Hydrema 912FS
Articulated Dump Trucks Hydrema 912FS
Articulated Dump Trucks Hydrema 912FS

Visit Hydrema live at

Technical specs - 912FS Hydrema

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8 t
Standard tyres
620/55-26.5
Dump capacity
5.6 m³
Travel speed
40 km/h
Net load
10 t
Turning radius outside
6.1 m
Model series
F
Engine manuf.
Cummins
Engine type
QSB4.5L
Engine power
108 kW
Displacement
4.5 l
Revolutions at max torque
2000 rpm
Emission level
IV

More technical details, like: transport length, transport width, transport height, loading height, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Special equipment

Diesel particulate filter
No
Central lubrication
No
Heated dump body
No
Tailgate
No
Aircondition
Yes

Download datasheets (PDF)

Hydrema 912FS FAQ

When was the Hydrema 912FS manufactured?

The Hydrema 912FS was manufactured from 2015 to 2021.

How much does the Hydrema 912FS weigh?

The Hydrema 912FS weighs 8 tons.

What is the travel speed of the Hydrema 912FS articulated dump truck?

The Hydrema 912FS has a travel speed of 40 km/h.

What are the undercarriage specifications of the Hydrema 912FS?

The Hydrema 912FS is equipped with standard tyres sized 620/55-26.5.

What is the outside turning radius of the Hydrema 912FS articulated dump truck?

The Hydrema 912FS has an outside turning radius of 6.1 meters.

What is the material handling capacity of the Hydrema 912FS articulated dump truck?

The Hydrema 912FS articulated dump truck has a net load capacity of 10 tons and a dump capacity of 5.6 cubic meters.

How much is a Hydrema 912FS Articulated dump truck (2015u20132021) worth?

The residual value of the Hydrema 912FS depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
