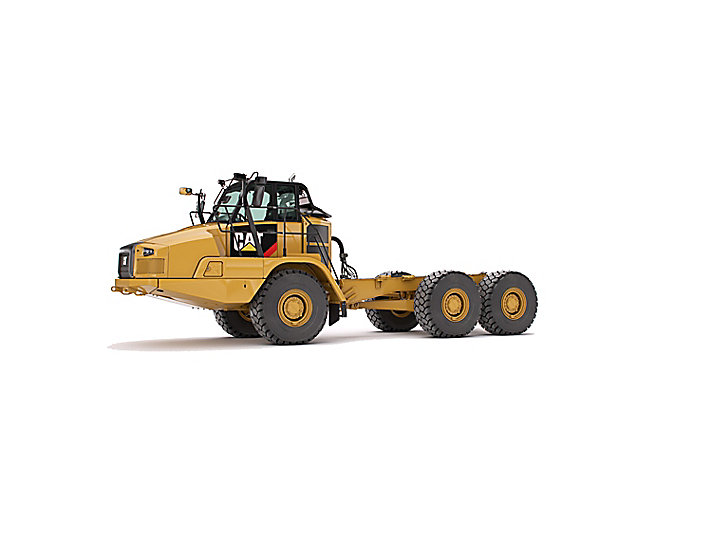

730C2 Bare Chassis Caterpillar 730C2 Bare Chassis Specifications & Technical Data (2017—2026)

Standard tyres: 23.5R25 – Travel speed: 55km/h – Net load: 28t – Turning radius outside: 7.47m – Engine manuf.: Caterpillar – Engine type: C13 Acert

Articulated Dump Trucks Caterpillar 730C2 Bare Chassis
Articulated Dump Trucks Caterpillar 730C2 Bare Chassis
Articulated Dump Trucks Caterpillar 730C2 Bare Chassis
Articulated Dump Trucks Caterpillar 730C2 Bare Chassis
Articulated Dump Trucks Caterpillar 730C2 Bare Chassis
Articulated Dump Trucks Caterpillar 730C2 Bare Chassis
Articulated Dump Trucks Caterpillar 730C2 Bare Chassis
Articulated Dump Trucks Caterpillar 730C2 Bare Chassis
Articulated Dump Trucks Caterpillar 730C2 Bare Chassis
Articulated Dump Trucks Caterpillar 730C2 Bare Chassis

Technical specs - 730C2 Bare Chassis Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Standard tyres
23.5R25
Travel speed
55 km/h
Net load
28 t
Turning radius outside
7.47 m
Engine manuf.
Caterpillar
Engine type
C13 Acert
Engine power
280 kW
Displacement
12.5 l
Revolutions at max torque
1200 rpm
Max. torque
2120 Nm
Cylinder bore x stroke
130x157 mm
Emission level
Tier 4 f

More technical details, like: weight, dump capacity, transport length, transport width, transport height, loading height, model series, dimension lxwxh, no. of cylinders are available in the full technical specs.

Special equipment

Diesel particulate filter
No
Central lubrication
No
Heated dump body
No
Tailgate
No
Aircondition
No

Download specalog and datasheets (PDF)

Caterpillar 730C2 Bare Chassis FAQ

When was the Caterpillar 730C2 Bare Chassis manufactured?

The Caterpillar 730C2 Bare Chassis was first produced in 2017.

What is the travel speed of the Caterpillar 730C2 Bare Chassis articulated dump truck?

The Caterpillar 730C2 Bare Chassis has a travel speed of 55 km/h.

What are the standard tyres of the Caterpillar 730C2 Bare Chassis?

The Caterpillar 730C2 Bare Chassis is equipped with standard tyres sized 23.5R25.

What is the outside turning radius of the Caterpillar 730C2 Bare Chassis?

The Caterpillar 730C2 Bare Chassis has an outside turning radius of 7.47 meters.

What is the material handling capacity of the Caterpillar 730C2 Bare Chassis?

The Caterpillar 730C2 Bare Chassis has a material handling capacity of 28 t.

How much is a Caterpillar 730C2 Bare Chassis Articulated dump truck (2017u20132025) worth?

The residual value of the Caterpillar 730C2 Bare Chassis depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
