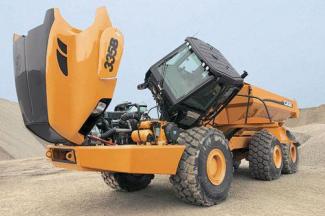

335B Case 335B Specifications & Technical Data (2010—2016)

The 335 B articulated dump truck model is manufactured by case. Find and download detailed specs and data sheets for this machine …

The 335 B articulated dump truck model is manufactured by case. Find and download detailed specs and data sheets for this machine here.

The case 335 B is a 28.5t machine with case engine which powers this model with up to 306kW or 410 horse power. The 335 B is categorised in the biggest machine segment in the articulated dump trucks category. The model's dimensions are 10.78m x 3.19m x 3.8m.

It has been sold without air Bin heating, Central lubrication and Tailgate as of 2016. There are more detailed specifications and machine descriptions available in the original case 335 B specs data sheet. You can download it for free in French, German, English, Chinese and Spanish on LECTURA Specs.

The most commonly viewed case models of this type on LECTURA Specs are the, and other articulated dump trucks, which currently range from up to are also available. Want more detailed specifications? Download the latest case 335 B specs data sheet on LECTURA Specs today!

335B

Years of manufacture: 2010—2016

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 335B Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 28.5 t

Standard tyres: 26.5 R 25

Dump capacity: 15 m³

Travel speed: 47.5 km/h

Net load: 31.5 t

Transport length: 10.78 m

Transport width: 3.19 m

Transport height: 3.8 m

Loading height: 3.07 m

Model series: B

Engine manuf.: Case

Engine type: Family IV

Engine power: 306 kW

Displacement: 12.9 l

Revolutions at max torque: 2100 rpm

More technical details, like: turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, engine manufacturer, engine model, emission rating, number of cylinders, rated speed, engine output - net, engine output - gross, torque, drive configuration, transmission type, transmission manufacturer, transmission model, final drive, tyre - size, service brake - type, length - overall, height - max, ground clearance, width - over tyres, width - transport, width - operating, loading height, hoist - type, hoist - angle, articulation angle, turning radius - outside, fuel tank, heaped capacity, cycle time - raise, net weight, payload, gross weight are available in the full technical specs.

Special equipment

Diesel particulate filter: No
Central lubrication: No
Heated dump body: No
Tailgate: No
Aircondition: No

Download datasheets (PDF)

Case 335B FAQ

When was the Case 335B manufactured?

The Case 335B was manufactured from 2010 to 2016.

How much does the Case 335B articulated dump truck weigh?

The Case 335B articulated dump truck weighs 28.5 tons.

What are the transport dimensions of the Case 335B articulated dump truck?

The Case 335B has a transport length of 10.78 meters, a transport width of 3.19 meters, and a transport height of 3.8 meters.

What is the travel speed of the Case 335B articulated dump truck?

The Case 335B articulated dump truck has a travel speed of 47.5 km/h.

What are the undercarriage specifications of the Case 335B articulated dump truck?

The Case 335B articulated dump truck is equipped with standard tyres sized 26.5 R 25.

What is the material handling capacity of the Case 335B articulated dump truck?

The Case 335B articulated dump truck has a net load capacity of 31.5 tons, a dump capacity of 15 cubic meters, and a loading height of 3.07 meters.
